Name: 7mm SMD RGB Instant - Emitting Tri - Color LED, Touch - Smart Switch, Compact Size with High Luminous Efficiency
SKU: 15546
Price: 0.79 USD
Availability: InStock

7mm SMD RGB Instant – Emitting Tri – Color LED, Touch – Smart Switch, Compact Size with High Luminous Efficiency

$0.79

Mounting Characteristic: Front of Panel
Size: 7mm
Color: black
Operating Temperature: – 30 °C to +80 °C
Mounting Method: patch
Switch Function: on – off
Rated Current: 20mA
Rated Voltage – DC: 12V
Rated Voltage: 12V 20mA
Output: Independent Switches (3PST)
Voltage – Switch AC: 250V
Rated Voltage: 12VDC
Material: Metals and Plastics
Operating temperature: – 30 °C~80 °C
Rated power: DC12V
Swing life: 50000 cycles
Insulation resistance: 100M Min
Application: Electric Equipment

Quantity

Discount (%)

Price

1 - 9

—

$0.79

10 - 99

5.06 %

$0.75

100 - 999

12.66 %

$0.69

1,000 - 9,999

20.25 %

$0.63

10,000+

25.32 %

$0.59

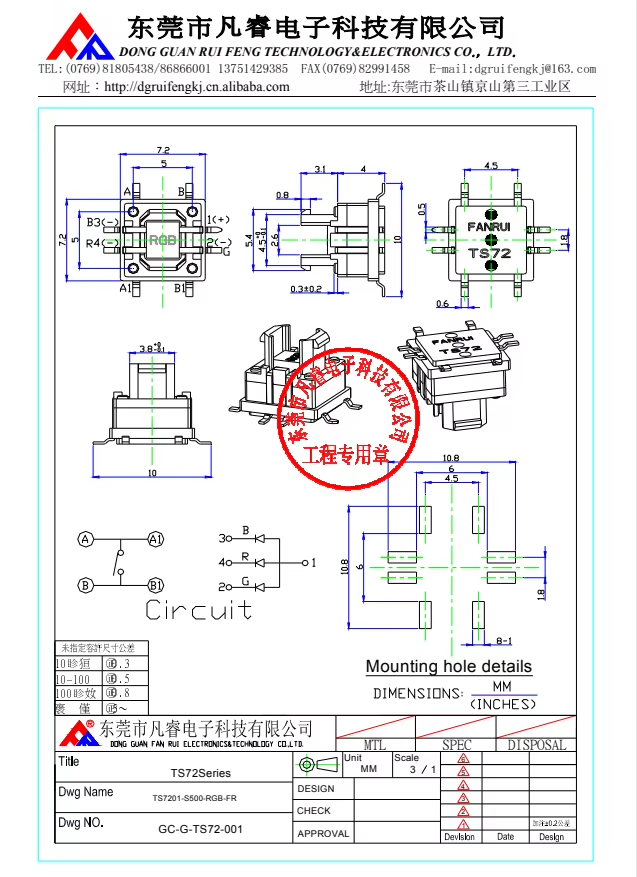

TS7201-S500-RGB-FR-Specification-.pdf (60 downloads )

Basic Information

The product name is Luminous 3 – color LED switch, with a boundary dimension of 7mm. The product materials include metal, plastic, and LED lamps. It is operated by a top – finger button, providing a clear and distinct pressing sensation.

Feature Advantages

This product is small – sized and features RGB instantaneous illumination. It is a 3 – color LED light switch, with optional plug – in patches. These features make the product excel in space utilization and lighting effect presentation.

Application Scenarios

It is suitable for electronic devices such as simulation game steering wheels and racing steering wheels. Its main functions include start – stop switching and scene atmosphere light control, adding functionality and ambience to related devices.
