RS17112-52-10P-9C500-M10B9-T20.5A5-FR-Specification Sheet-1.pdf (14 downloads )
1. Product Overview

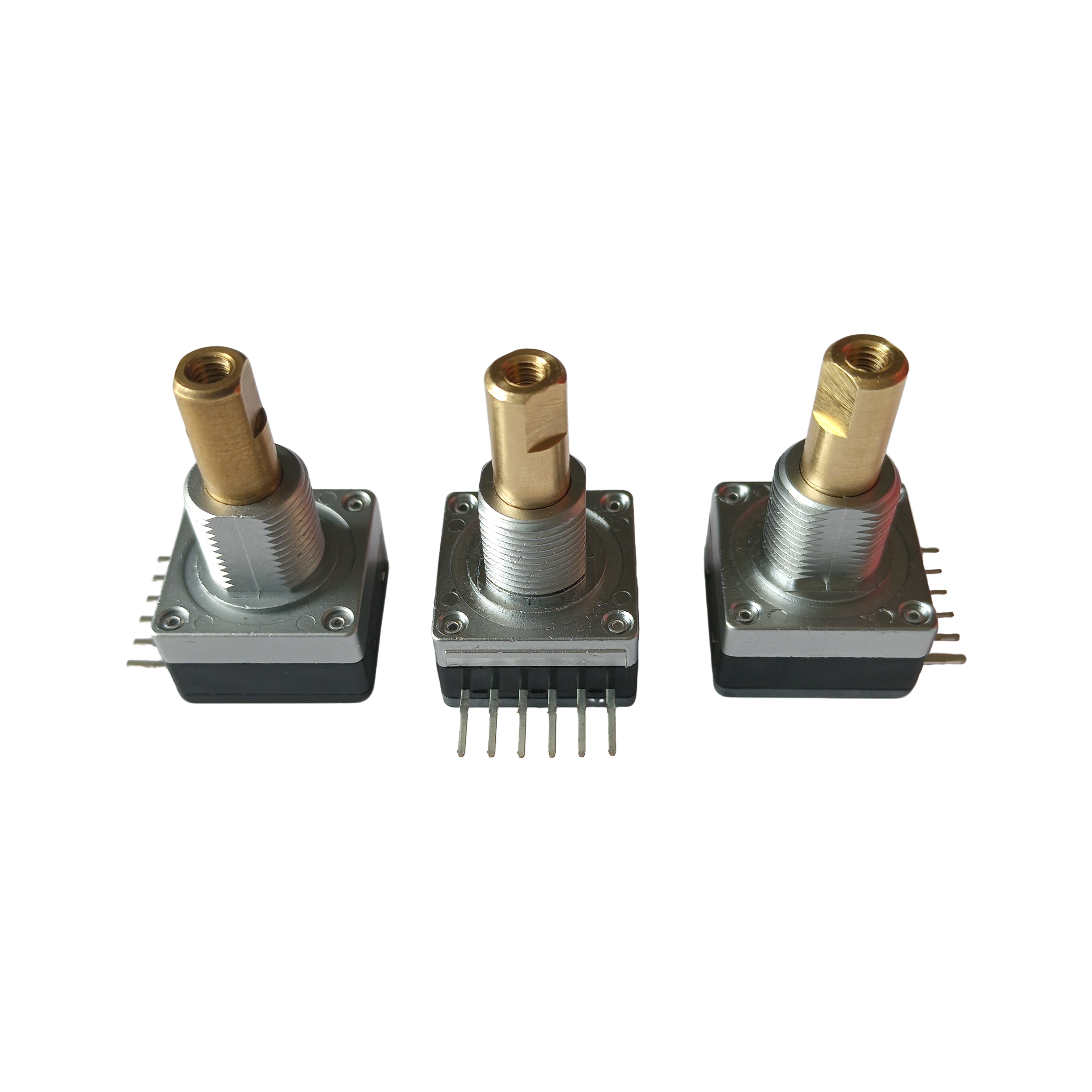

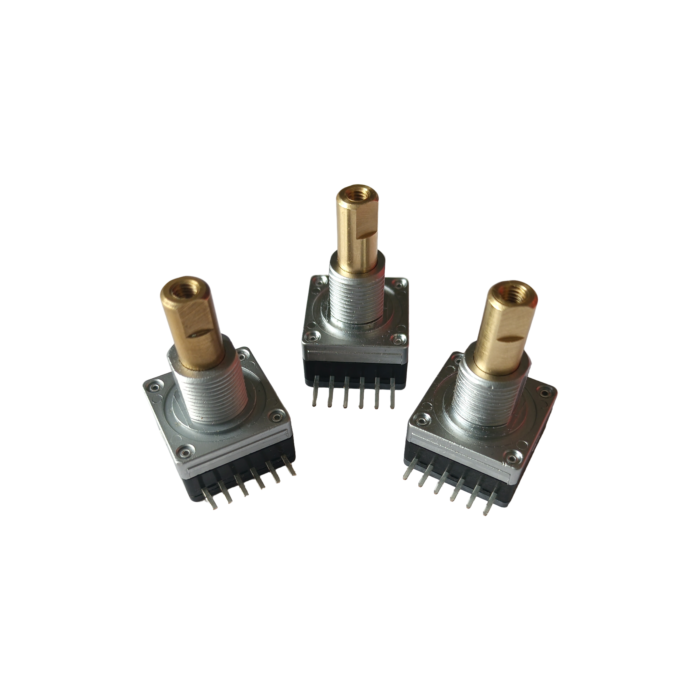

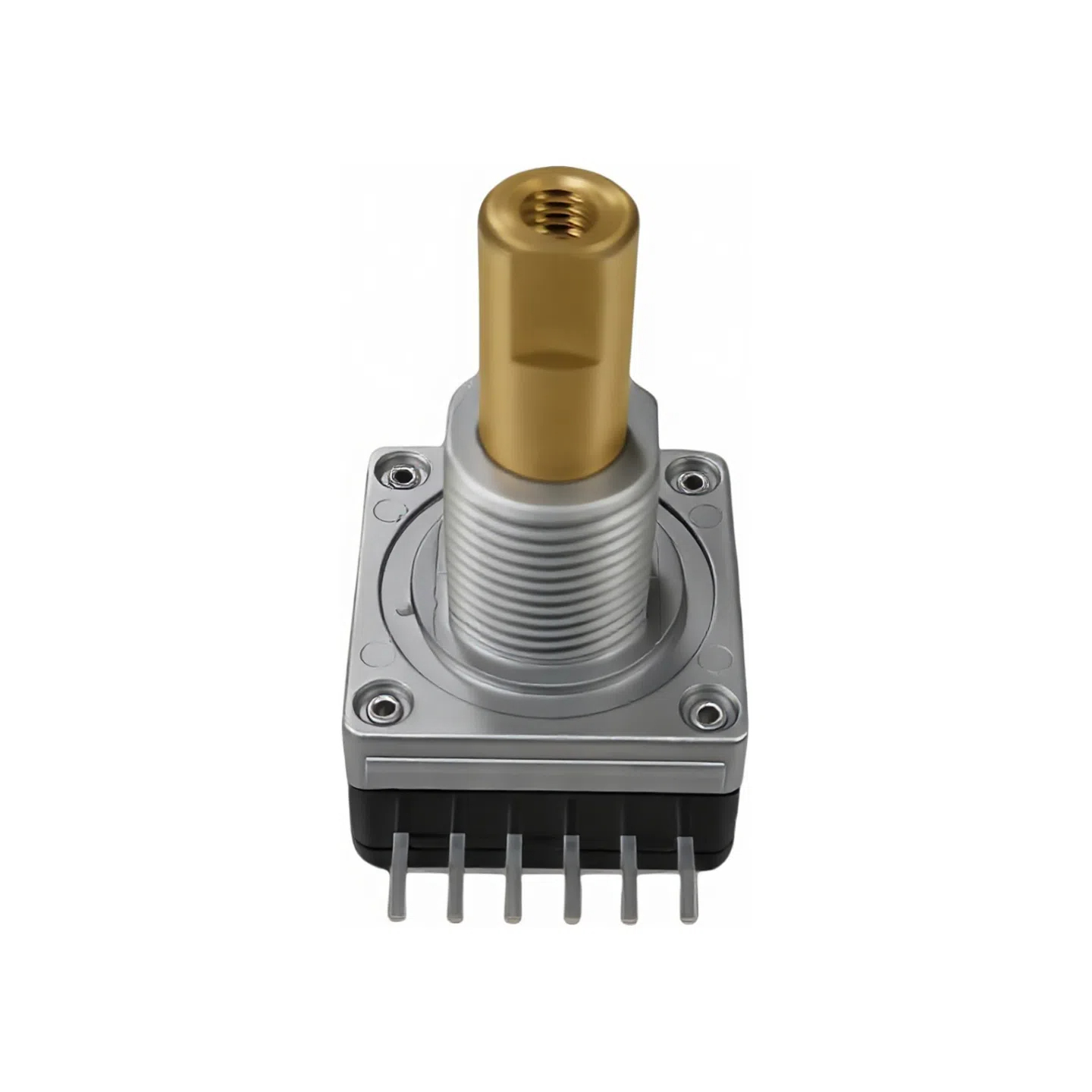

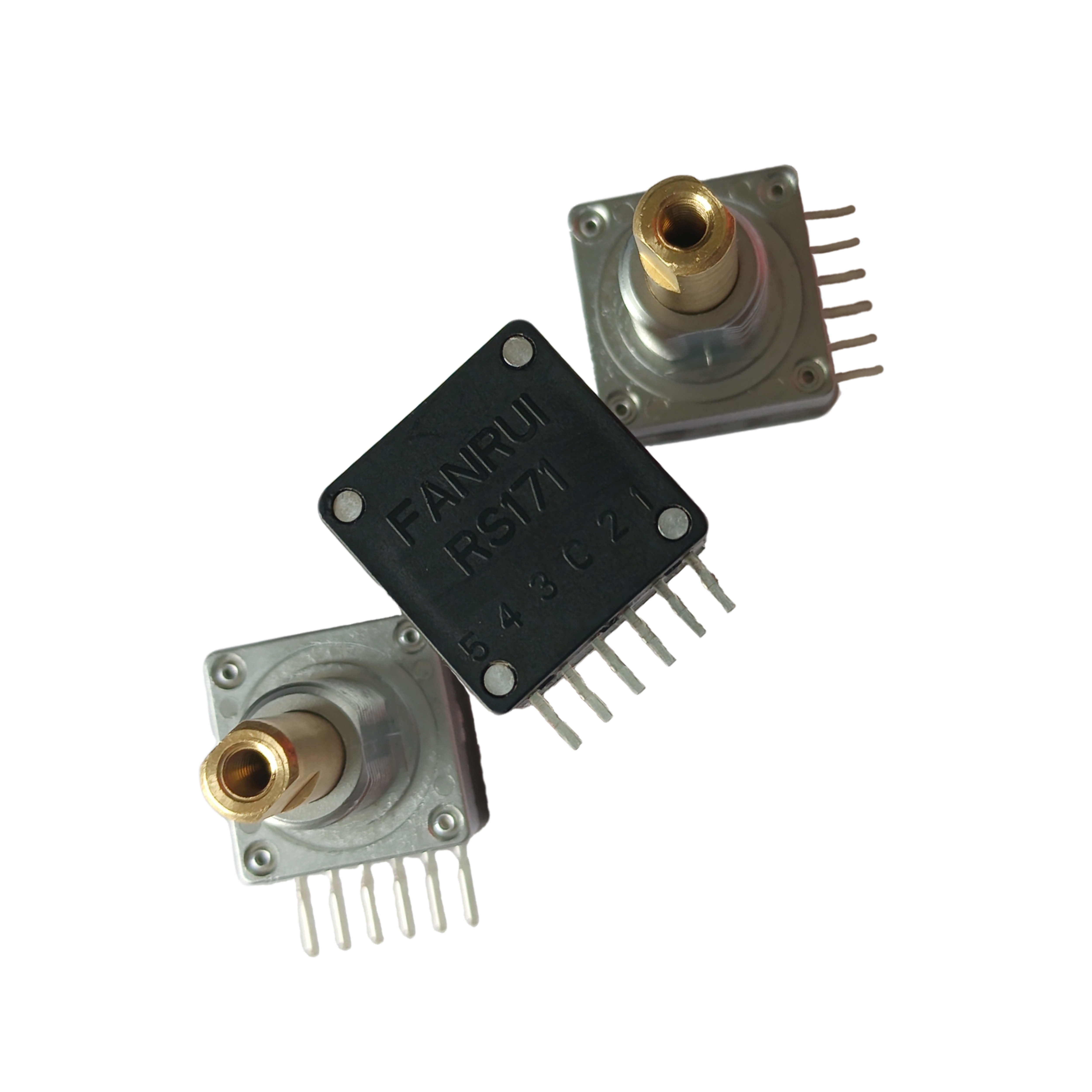

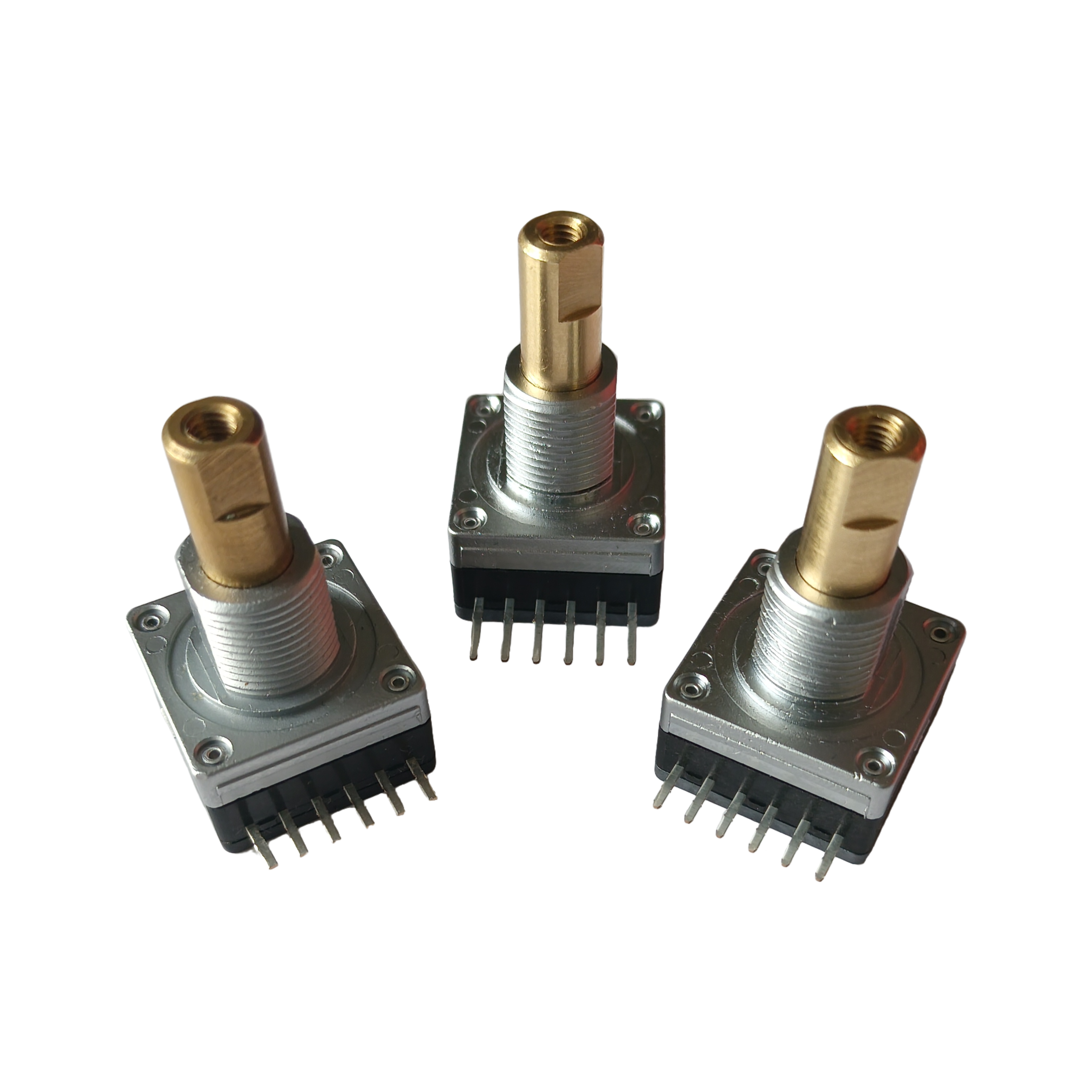

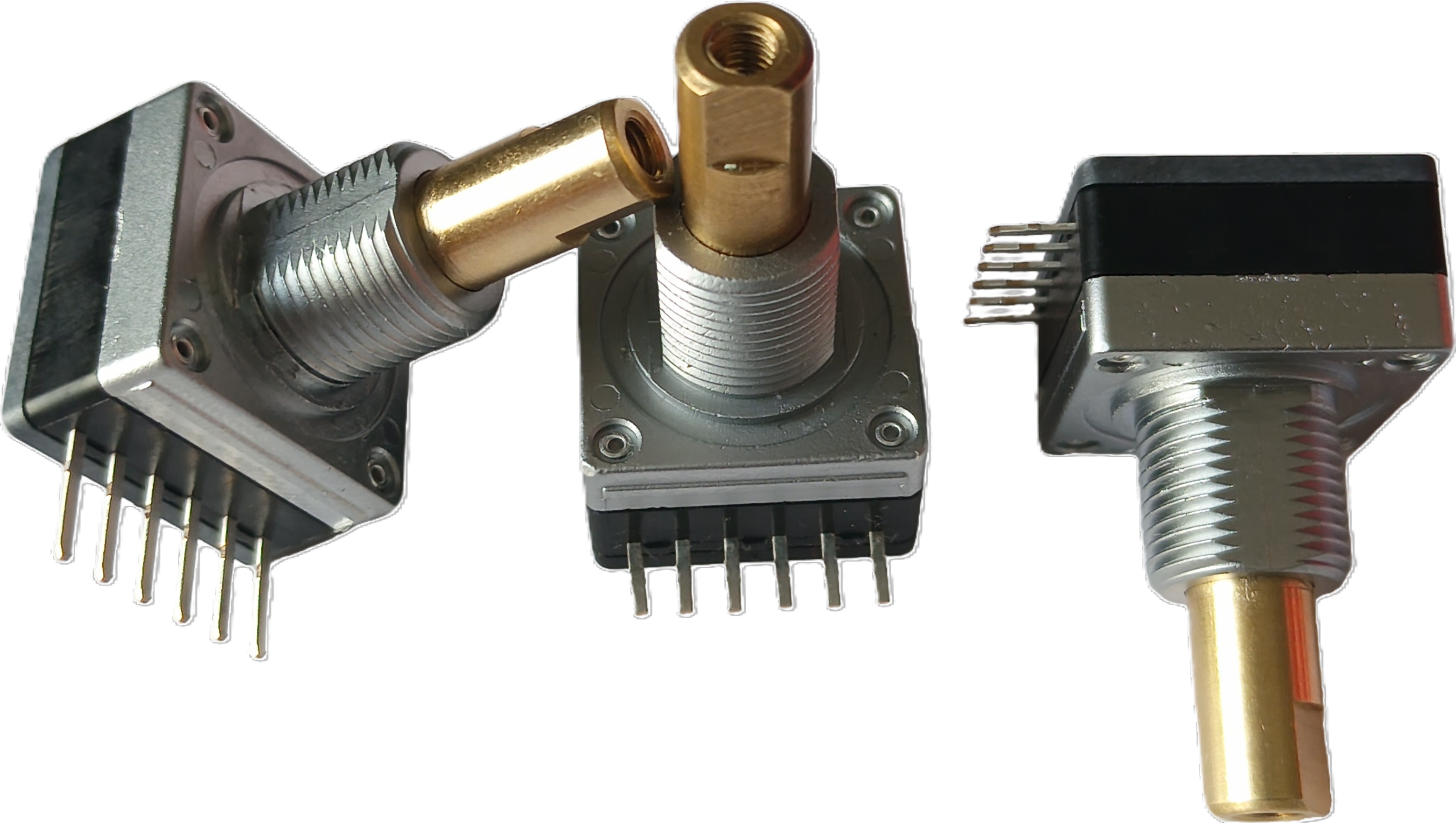

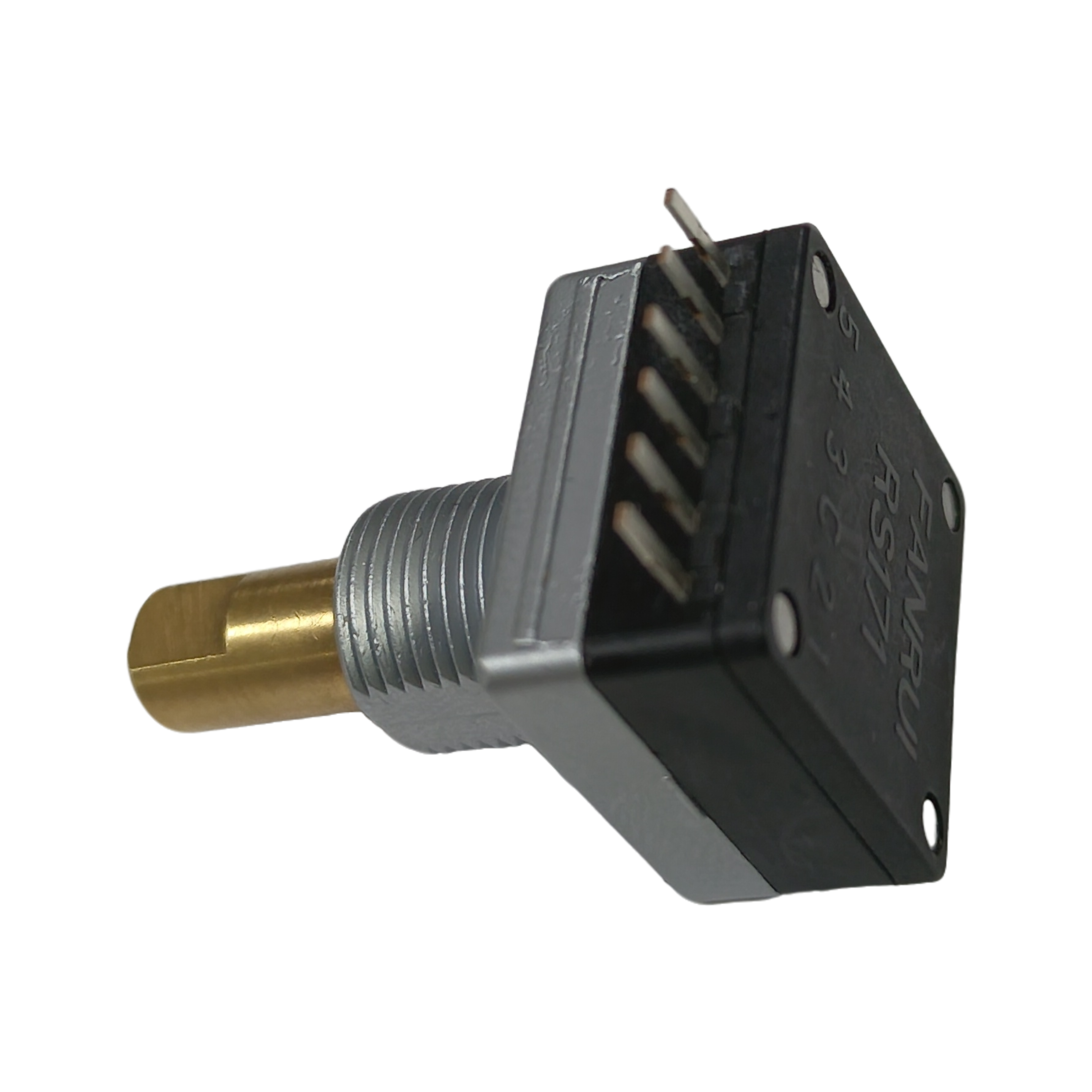

The RS17112-52-10P-9C500-M10B9-T20.5A5-FR is a Type 171 multi-way switch manufactured by Dongguan Fanrui Electronics & Technology Co., Ltd., suitable for signal switching scenarios in various electronic devices.
2. Core Parameters
- Rated Voltage: DC 10V, 10mA (1mA MIN)
- Effective Switching Angle: 36°±3°, enabling precise angle switching
- Rotation Torque: 500±200gf·cm, ensuring stable and moderate operation feel
- Operating Temperature Range: -30°C to +80°C, suitable for wide-temperature environments
- Storage Temperature Range: -35°C to +85°C, facilitating storage and transportation
3. Mechanical Properties
-
Shaft Push-Pull Strength:
Apply a 10kg static load axially to the shaft for 10s after soldering to the PCB. The shaft should show no damage, abnormal rotation, and meet electrical requirements. -
Shaft Stop-Per Strength:
Apply 5kg·cm torque at both end stops for 5s; no significant looseness or contact issues are allowed. -
Shaft Wobble:
Apply a 1Kgf load 5mm from the shaft tip perpendicular to the axis; wobble should be ≤0.8×L/30mm p-p (L: installation length, proportional calculation). -
Bushing Nut Tightening Strength:
Tightening torque ≤6.2 in-lbs (7.1Kgf·cm) per specified installation.
4. Electrical Characteristics
- Insulation Resistance: ≥100MΩ when tested at DC 100V between plastic and terminals
- Withstand Voltage: No damage, arcing, or dielectric breakdown after applying AC 100V for 1min between plastic and terminals
- Contact Resistance: ≤100mΩ when tested at DC 5V/1A or 1kHz±200Hz (max.20mV, 50mA)
5. Durability
-
Rotational Life:
After 30,000 cycles at 800 rotations/hour under no load, contact resistance remains ≤100mΩ, with other specs met. -
Environmental Resistance:
Passes heat (85°C, 96h), humidity (40°C, 90~95%RH, 96h), and cold (-30°C, 90h) tests with initial specs maintained. -
Free-Fall Resistance:
No excessive deformation or damage (except terminal deformation) after dropping from 60cm onto concrete with vinyl tile.
6. Soldering and Usage Notes
Soldering Conditions
- Manual Soldering: ≤260°C, ≤5s
- Dip Soldering: ≤350°C±5°C, 5±1s (max 2 repetitions)
Usage Precautions
- Store away from high temperature, humidity, and corrosive gases
- Use within 6 months after opening
- Avoid water contact, lateral pressure, or impact on the shaft
7. Packaging Specifications
Blister Box
- 50 pieces/box, size: 290mm×180mm×25mm
Carton Packaging
- 800 PCS/carton: 16 boxes, 10 layers, 2 boxes/layer; carton size: 440mm×345mm×170mm
- 1000 PCS/carton: 20 boxes, 10 layers, 2 boxes/layer; carton size: 440mm×345mm×200mm
