Highly Durable and Popular RS1010 Rotary Transfer Switch: Available in 1-Pole & 2-Pole Configurations, 3/4/5-Position Options

$0.65

Color: black
Size: 10mm
Material: Metals and Plastics
Operating temperature: -10 °C~+70 °C
Rated power: DC16V
Swing life: 15000 cycles
Contact resistance: 100mΩ
Product Name: Rotary Selector Switch
Application: Electronic Equipment
Keywords: Rotary Rotate Switch

Quantity	Discount (%)	Price
1 - 9	—	$0.65
10 - 99	3.08 %	$0.63
100 - 999	7.69 %	$0.60
1,000 - 9,999	15.38 %	$0.55
10,000+	24.62 %	$0.49

Categories: Electronic Accessories, Switches, Rotate Move it Button Switch

Description
Reviews (0)

Description

RS10N2-5P-4C300-M7B7-YB15A6 Specification Sheet .pdf (28 downloads )

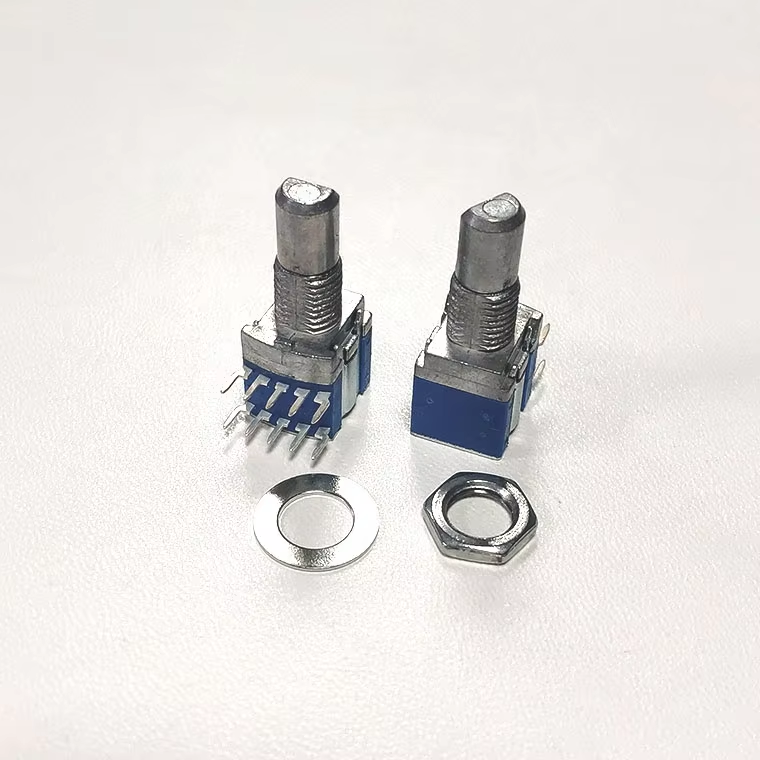

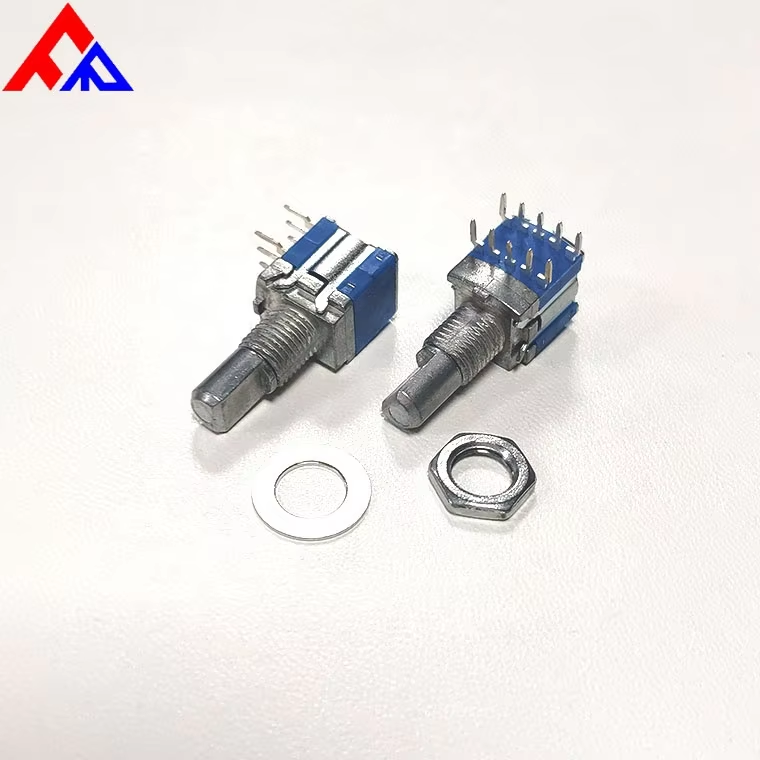

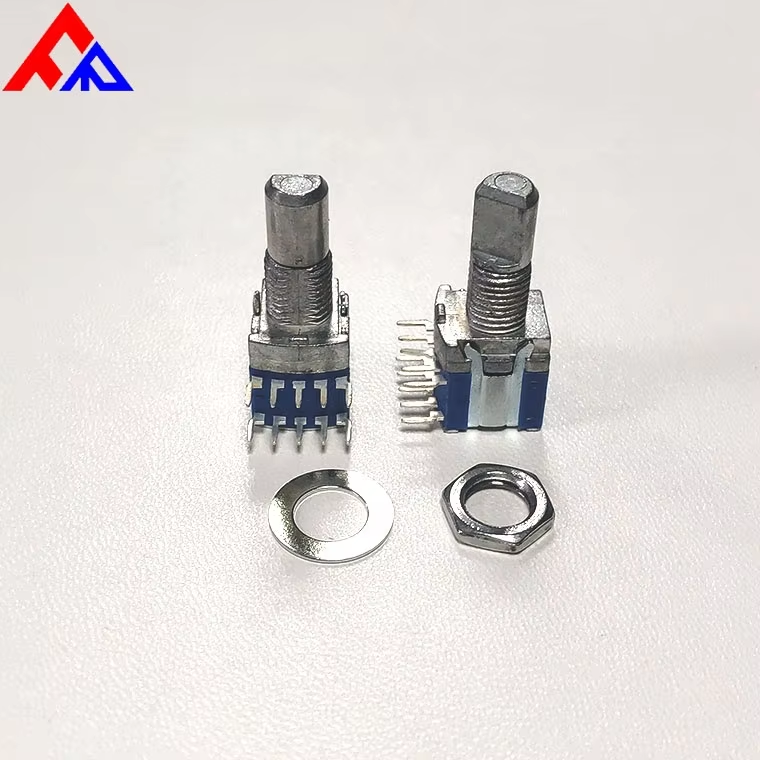

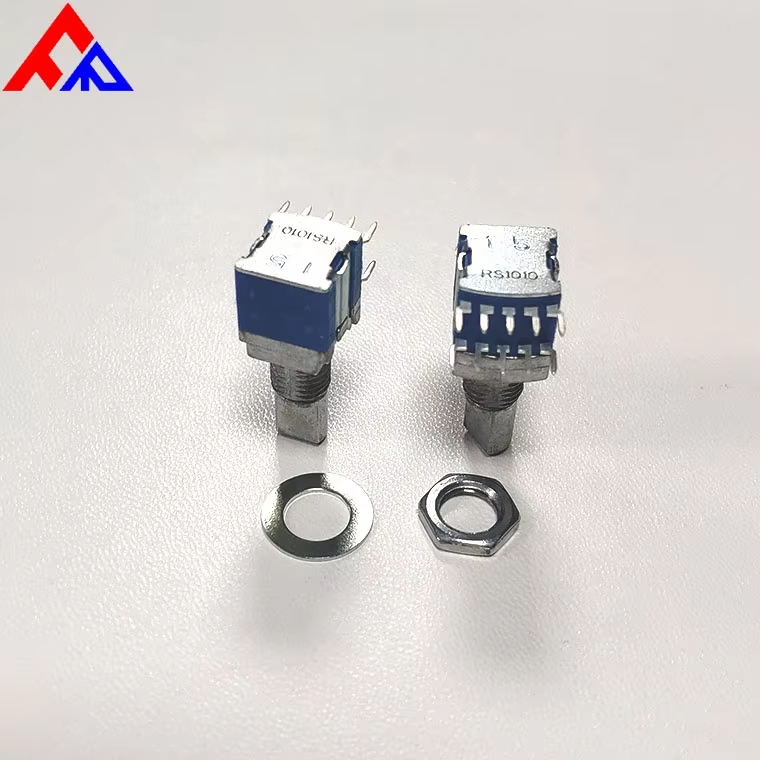

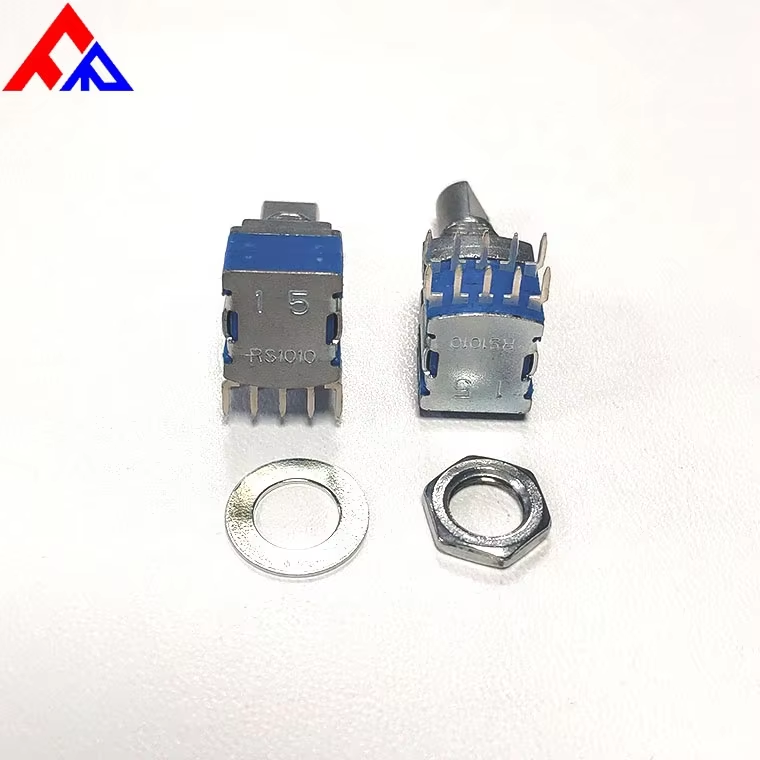

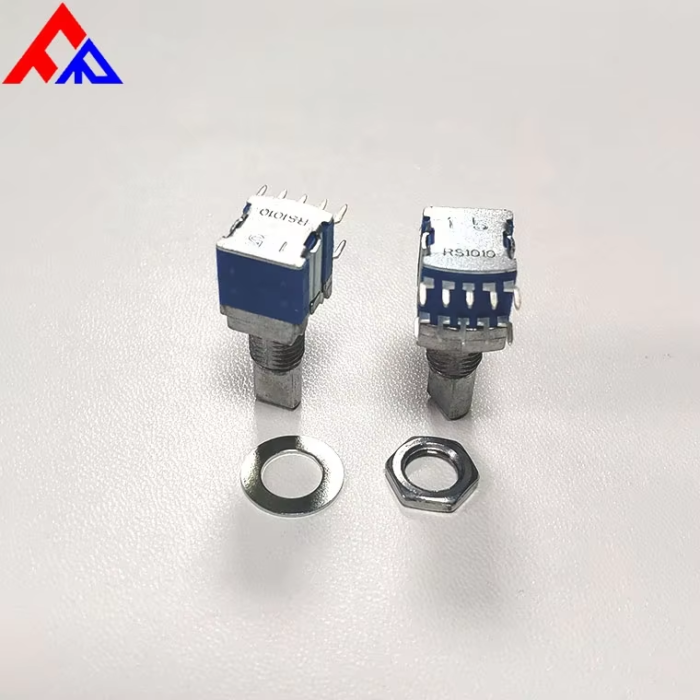

The product name is Rotary Multiplex Switch, with an external dimension of 10mm. It is made of metal and plastic. It can be rotated by fingers on the top, providing a clear and smooth sense of rotation and positioning.

Product Features and Advantages

It is equipped with a metal shaft handle, available in 1 – 2 poles and 2 – 6 gears. Its diverse specifications can meet different circuit control requirements, offering flexible options for equipment operation.

Product Applications and Functions

It is applicable to power amplifiers, stereos, mixing consoles, and various household appliances. It can mainly achieve functions such as volume adjustment, function switching, mode switching, speed regulation, and temperature regulation, making it an ideal choice for the control of various devices.
