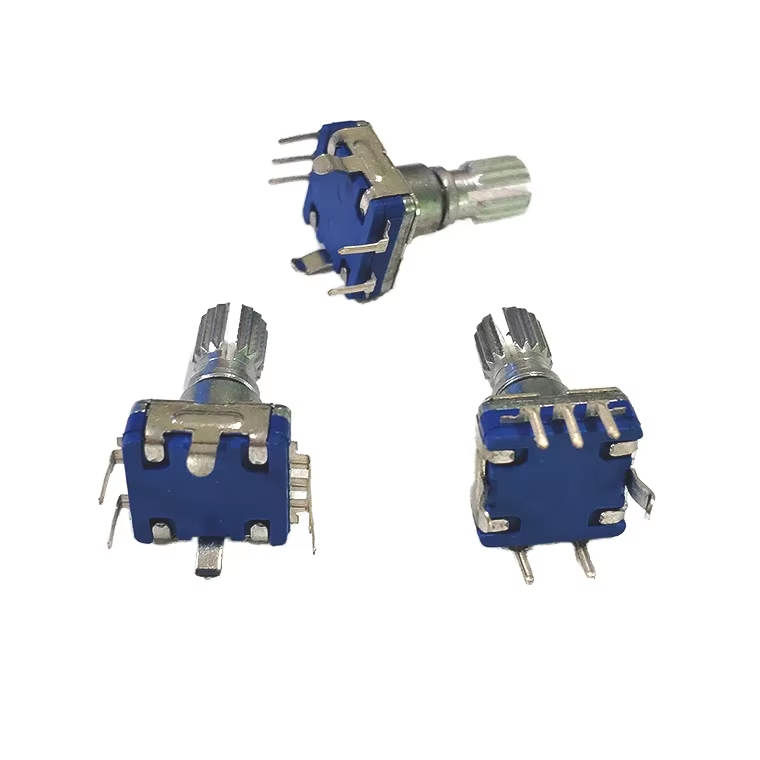

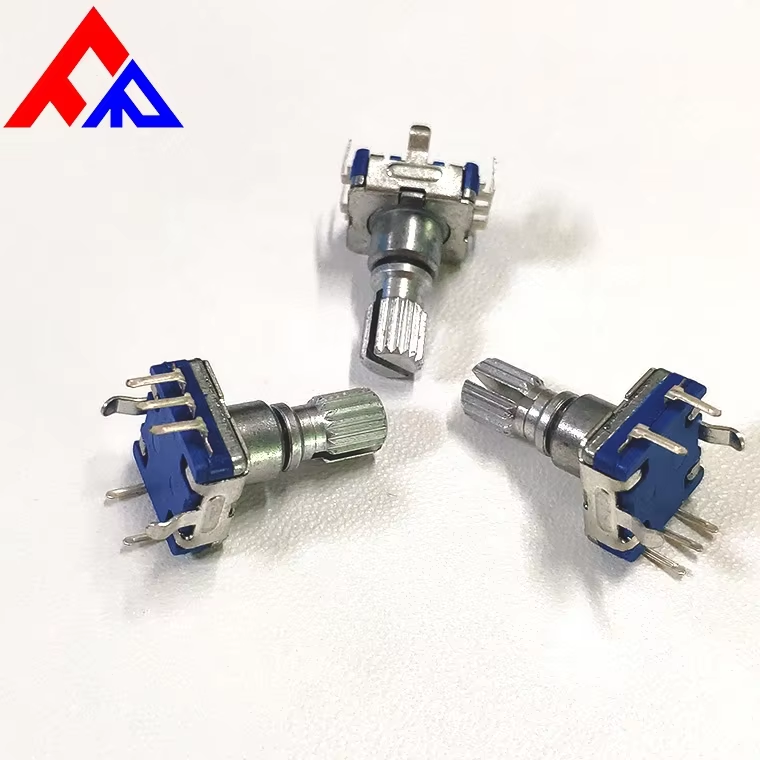

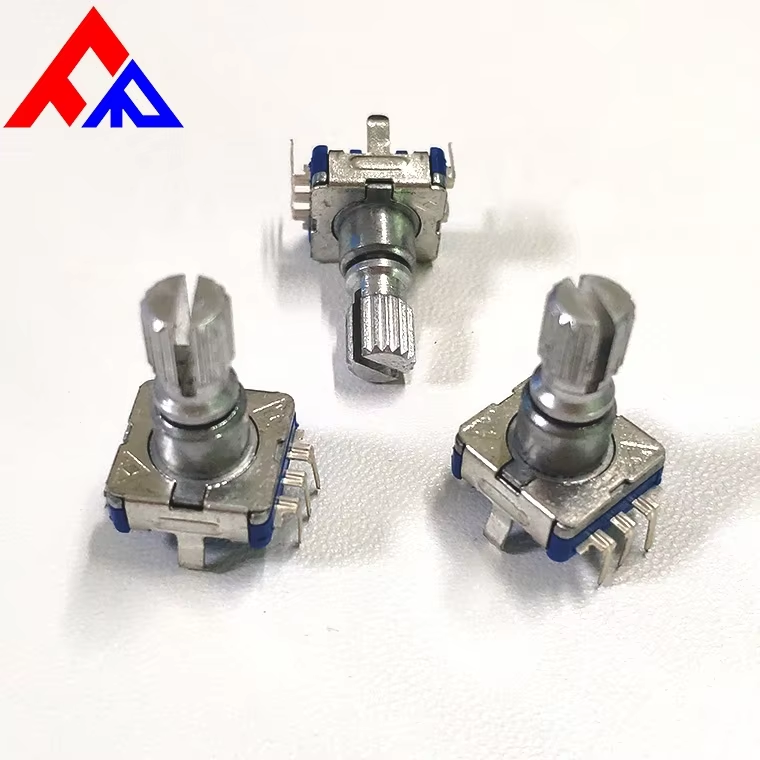

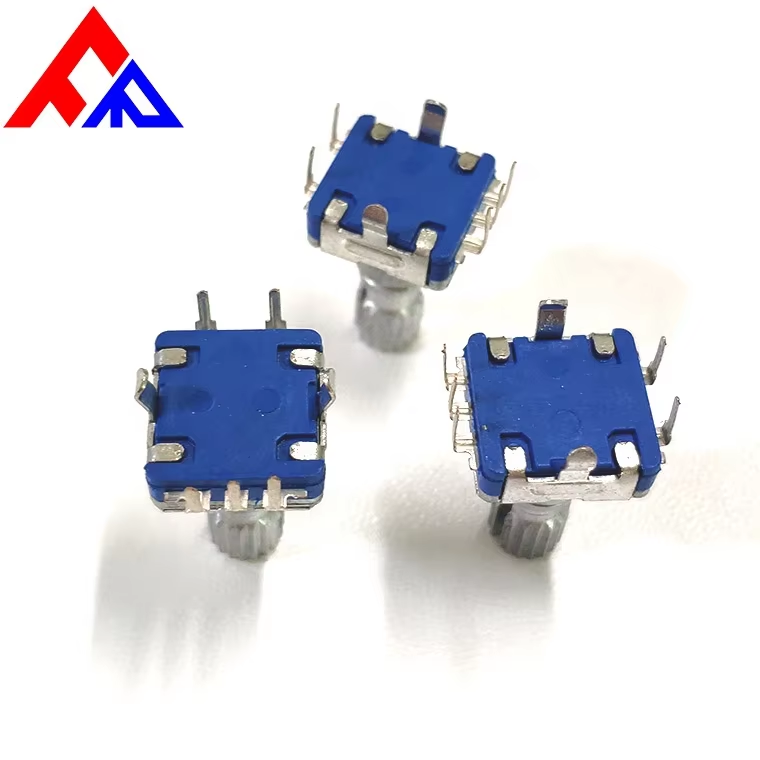

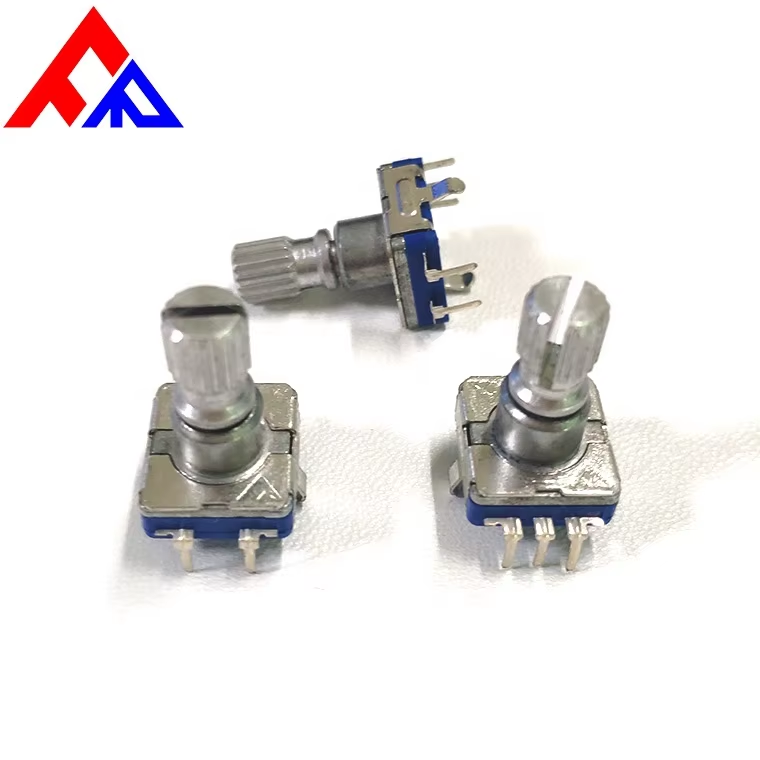

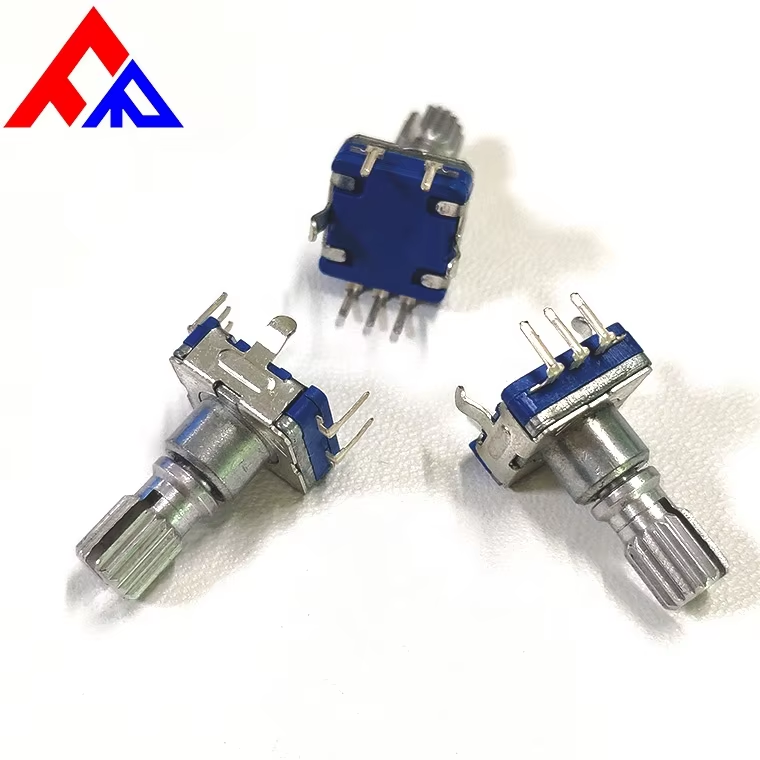

Manufacturer’s Stepless Rotary Incremental Pulse Encoder with Press Switch Encoder

$0.49

color: blue and silver
Dimensions: 11.8mm
Material: Metals and Plastics
Operating temperature: -30 °C~+80 °C
Rated power: DC5V
Slewing life: 100000 cycles
Output circuit: Encoder Voltage
Output signal: 15pulses/20pulses/16pulses/360°for each phase
Output mode: Voltage Output..etc
Certificate: ISO9001/ISO14001/ISO13485/IATF16949

Quantity	Discount (%)	Price
1 - 9	—	$0.49
10 - 99	4.08 %	$0.47
100 - 999	8.16 %	$0.45
1,000 - 9,999	20.41 %	$0.39
10,000+	40.82 %	$0.29

Categories: Electronic Components. Encoders, Rotary encoder

Description
Reviews (0)

Description

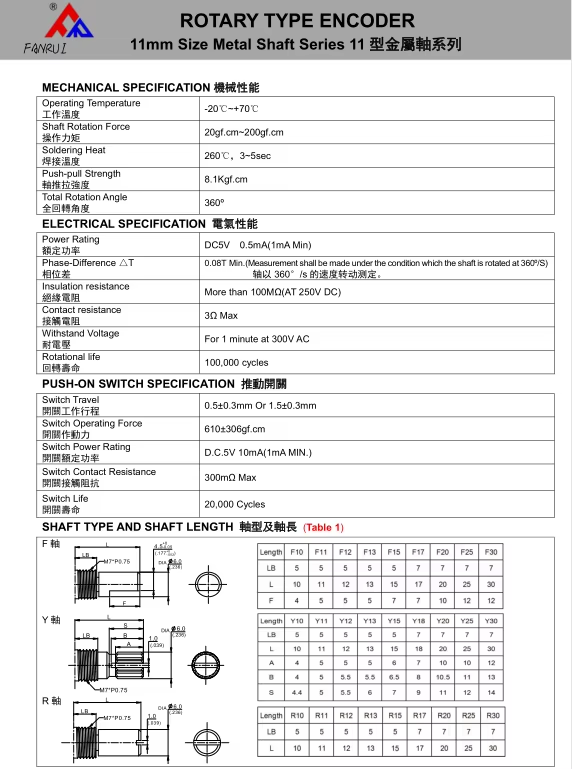

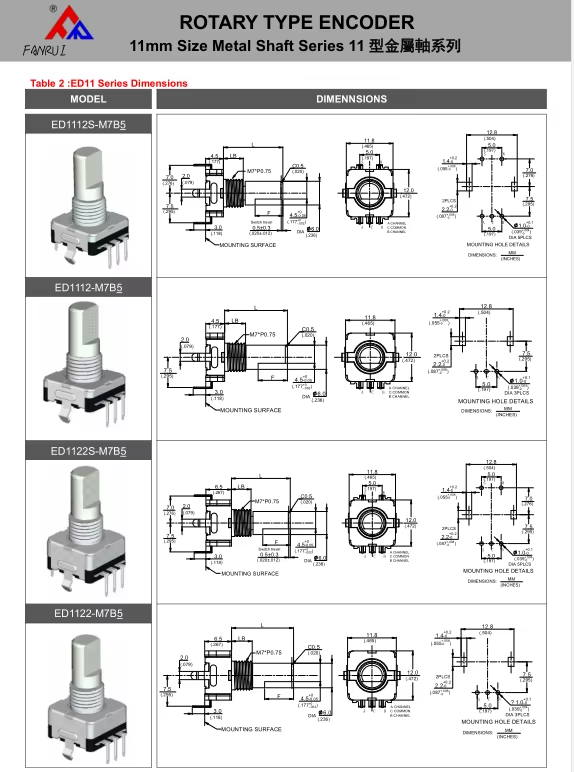

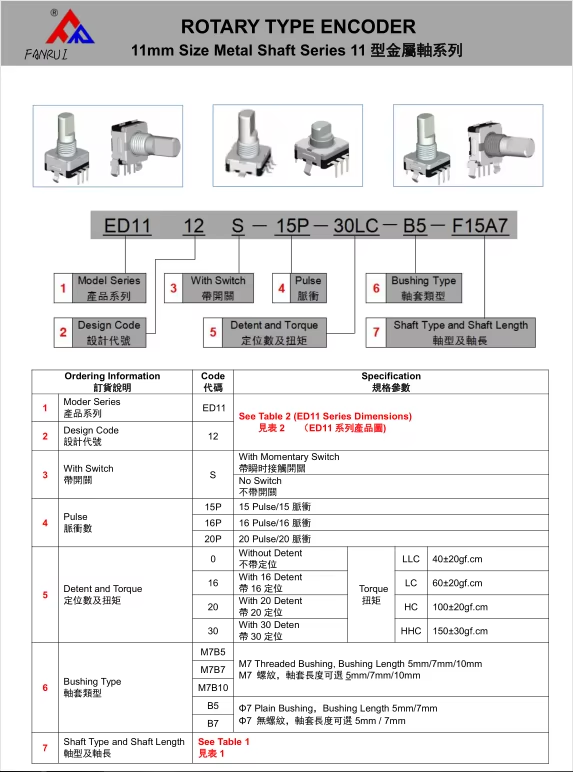

ED1112S-Specification.pdf (21 downloads )

Product Name: Incremental Encoder
Dimension: 11.8mm
Material: Metal and Plastic
Operation: Adjustable by finger on top, stepless rotation, and up – down press switch function

Product Features

Compact – sized for easy installation. Well – sealed to adapt to various environments. High – reliability ensures stable performance. Multiple specifications available to meet different needs.

Applications and Functions

Applicable to car audio, car navigation, mixers, other household appliances, and related electronics. Main functions: volume adjustment, temperature adjustment, FM tuning, and function switching.
