Name: LED - EC12 Encoder with Switch, 24 - Positioning, Digital Pulse, 20MM Shaft Length
SKU: 15606
Price: 1.29 USD
Availability: InStock

LED – EC12 Encoder with Switch, 24 – Positioning, Digital Pulse, 20MM Shaft Length

$1.29

Color: Black

Dimensions: 12.5mm
Material: Metals and Plastics
Operating temperature: – 20 °C~+80 °C
Rated power: DC5V
Slewing life: 30000 cycles
Output signal: 12pulses/18pulses/24pulses/360°for each phase
Output circuit: Voltage Output
Shaft Diameter: 6mm
Certificate: ISO9001/ISO14001/ISO13485/IATF16949

Quantity

Discount (%)

Price

1 - 9

—

$1.29

10 - 99

4.65 %

$1.23

100 - 999

7.75 %

$1.19

1,000 - 9,999

10.85 %

$1.15

10,000+

23.26 %

$0.99

001-ED1273S-Plastic Tape LED Switch-Specification-.pdf (37 downloads )

Basic Product Information

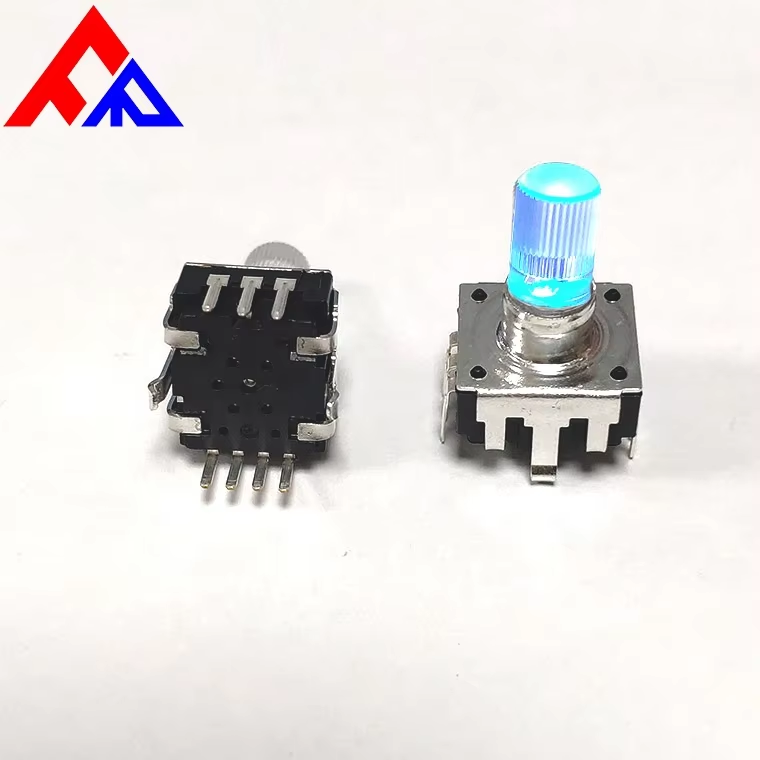

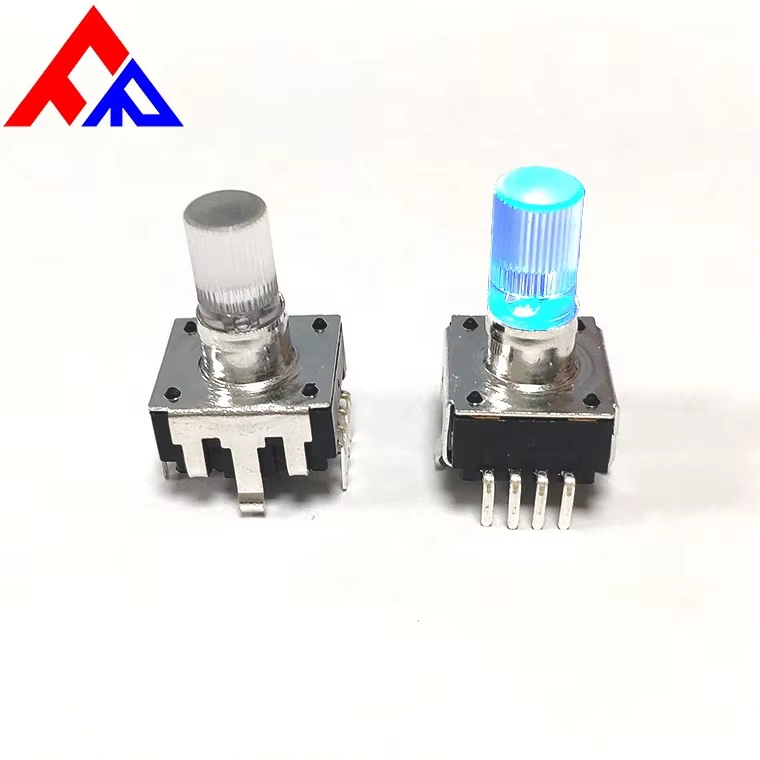

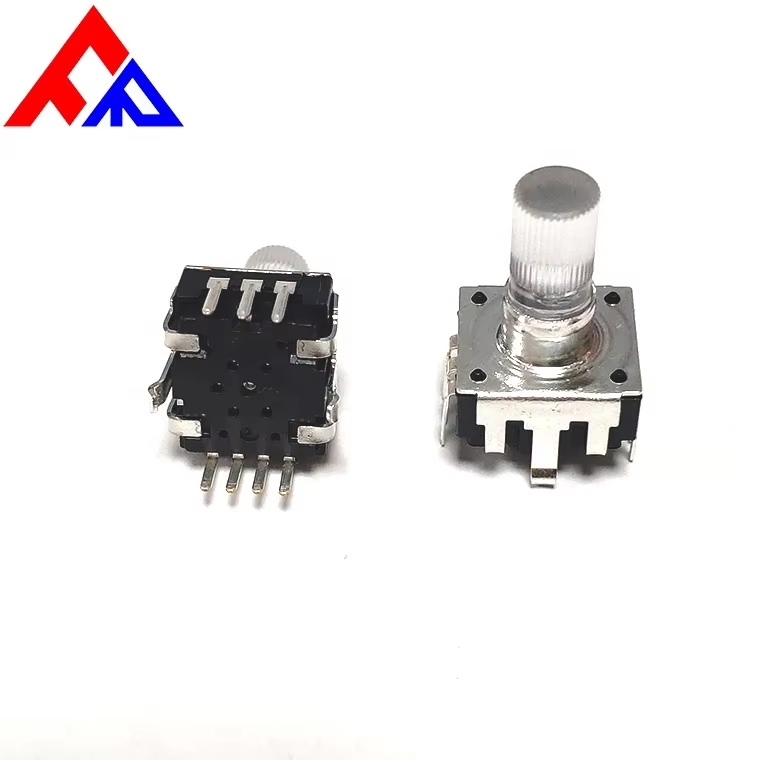

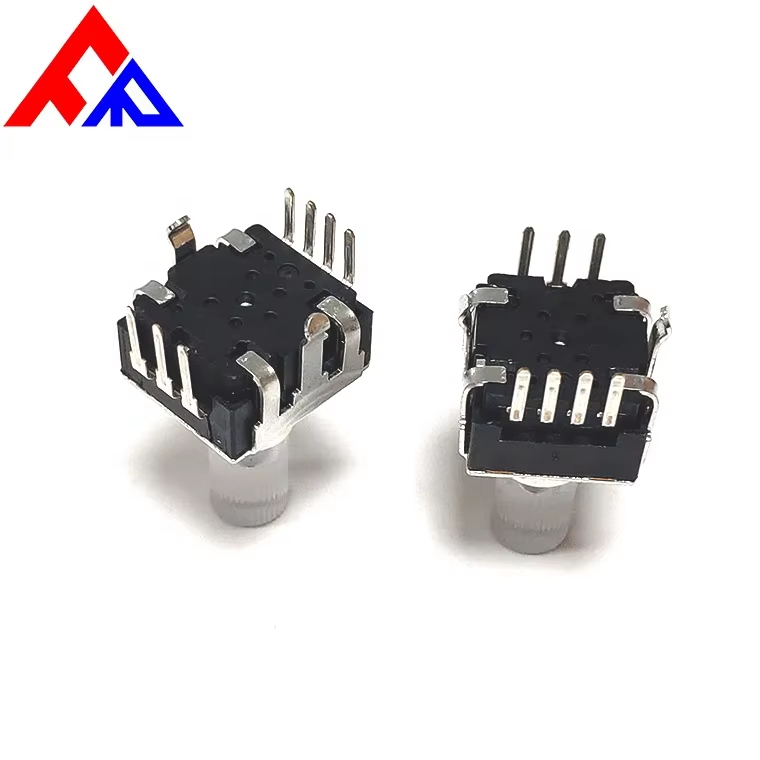

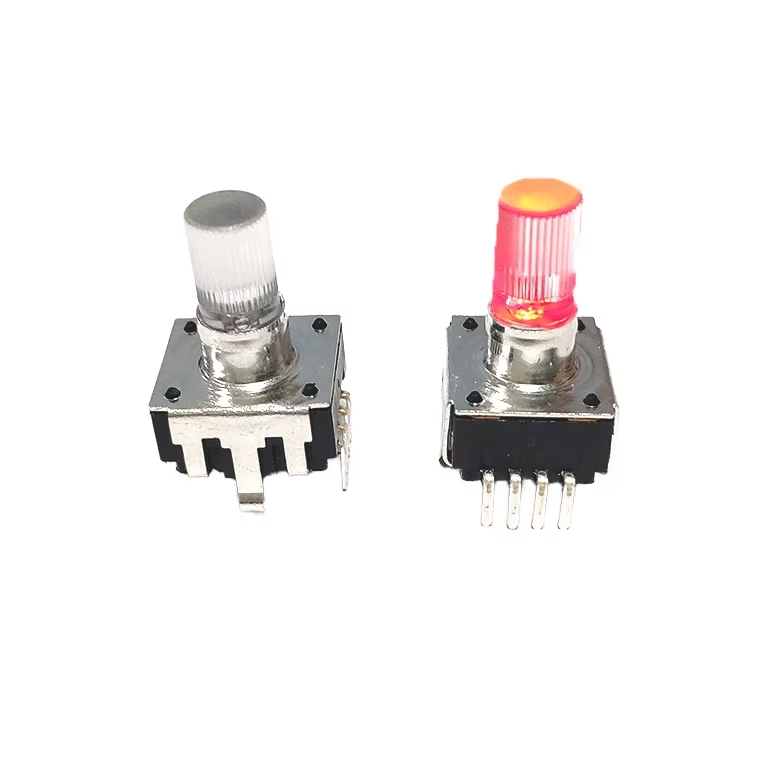

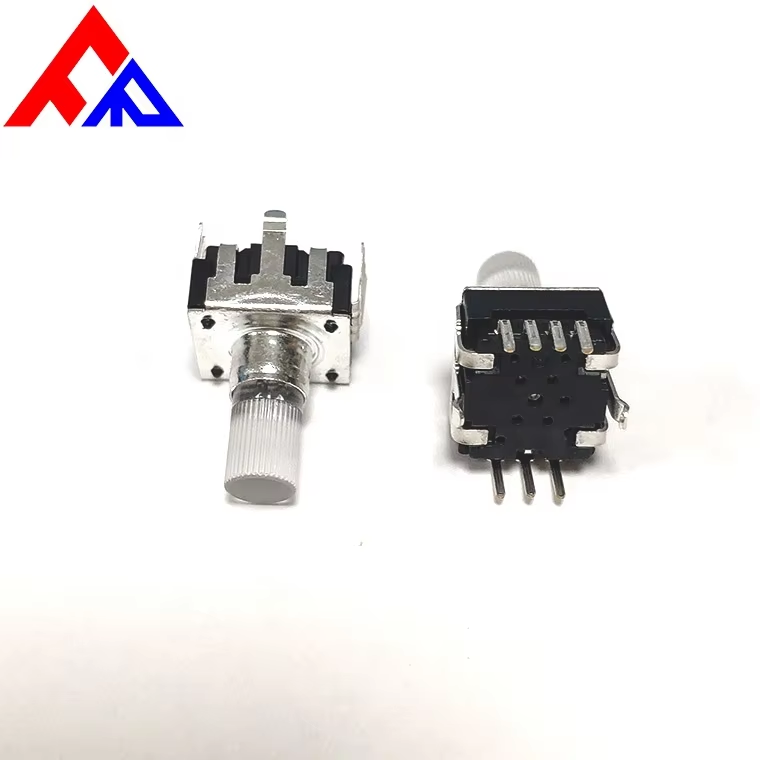

The product is a Rotary Encoder, boasting a boundary dimension of 12.5mm. Its constituent materials encompass metal, plastic, and RGB lighting elements. The operational characteristics are characterized by top – mounted finger – operable adjustment, seamless 360 – degree rotational functionality, and an integrated button feature.

Feature Advantages

The shaft handle is outfitted with RGB lighting, endowing it with excellent sealing properties and robust reliability. A wide array of specifications is available to cater to diverse requirements. The strong sealing mechanism helps it work well in different environments. The high-quality reliability ensures steady performance for a long time.

Application Scenarios and Functions

This Rotary Encoder is used in many places. You can find it in car audio systems, navigation devices, professional mixing consoles, and various household appliances. Its principal functions include precise volume regulation, temperature modulation, and frequency adjustment, thereby facilitating accurate control and adjustment for the associated equipment.
