High Quality 9mm Rotary Type Potentiometer from Factory Wholesale Rheostats

$0.39

颜色：黑色
旋转图纸：5gf.cm ~ 80gf.cm
材质：金属和塑料
最大工作电压：50V AC/5V DC
轴停止强度：≥1.5kgf.cm
旋转寿命：300,000次
循环耐电压：AC 250V时1分钟
旋转主轴：DC 20V时小于100mV
额定功率：B锥度0.01W其他锥度0.05W
轴移(mm pp)：在(0.7XL/20)mm pp以内最大L=轴长

Quantity	Discount (%)	Price
1 - 9	—	$0.39
10 - 99	—	$0.39
100 - 999	10.26 %	$0.35
1,000 - 9,999	25.64 %	$0.29
10,000+	48.72 %	$0.20

Categories: Potentiometer Variable Resistor, Rotary potentiometer, sliding potentiometer

Description
Reviews (0)

Description

RK09412-D3-FFD15A5-B5K60°±2011-specification-2.pdf (83 downloads )

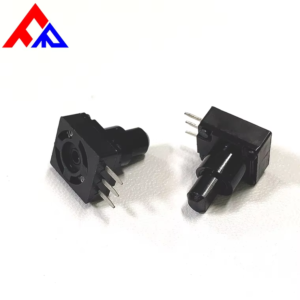

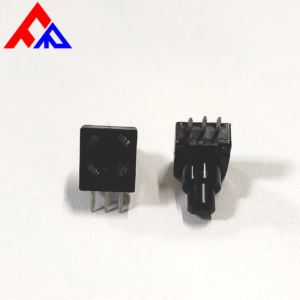

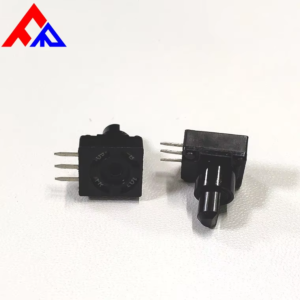

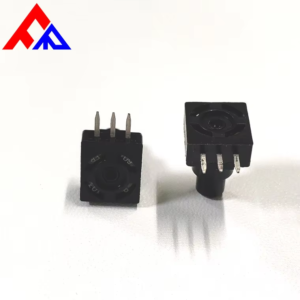

The RK09415 carbon film potentiometer measures 9.9mm in size. Made of plastic and carbon film, it combines portability with functionality.

Key Features

Operated by finger at the top, it rotates smoothly. With good sealing, it resists interference. Its small size, stable performance, and long lifespan make it a reliable choice.

Uses and Functions

It’s applied in steering wheel simulation, gear adjustment, and other electronics. Its main functions like speed and direction regulation boost device performance.
