Name: Customize machinery and equipment Application of metal carbon film potentiometers 16mm
SKU: 15677
Price: 4.55 USD
Availability: InStock

Customize machinery and equipment Application of metal carbon film potentiometers 16mm

$4.55

Diameter: 16mm
Certification: ISO9001/ISO14001/ISO13485/IATF16949
Material: Metal + Plastic
Insulation Resistance: 1G Ohm
Advantage: Timely Delivery
Color: Black
Rotational Life: 10000cycles
Total Rotational Angle: 300
Withstand Voltage: 1000V 1minute
Tolerance: ±10%

Rotation: 300°
Resistive Material: Carbon
Termination Style: Solder Lug
Actuator Diameter: 0.236″ (6.00mm)
Bushing Thread: M9 x 0.75
Shaft Size: 0.236″ (6.00mm)

Quantity

Discount (%)

Price

1 - 9

—

$4.55

10 - 99

4.4 %

$4.35

100 - 999

7.91 %

$4.19

1,000 - 9,999

12.31 %

$3.99

10,000+

16.7 %

$3.79

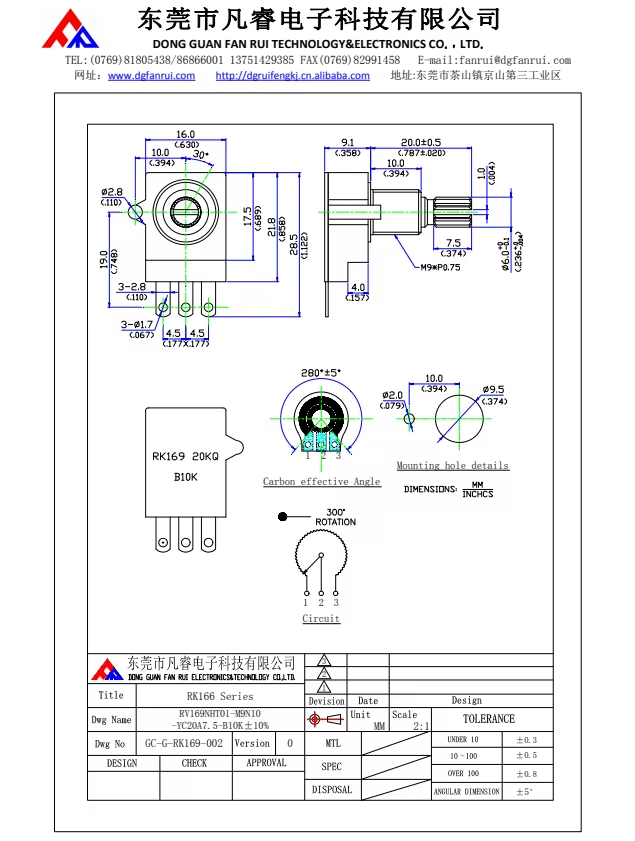

RV169NHT01-M9N10-YC20A7.5-B10K280°±10-L2-Specification-1.pdf (169 downloads )

Introduction

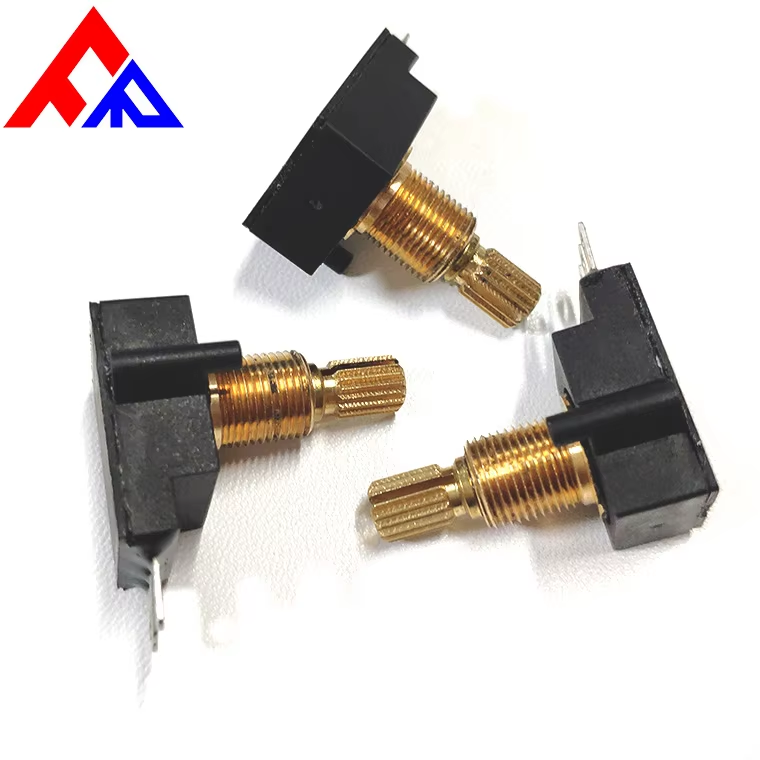

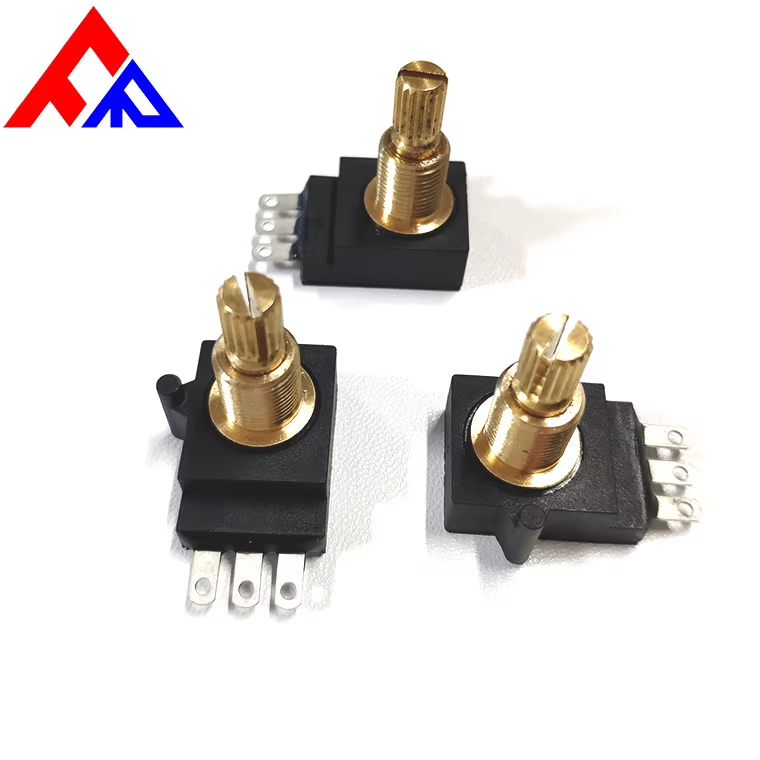

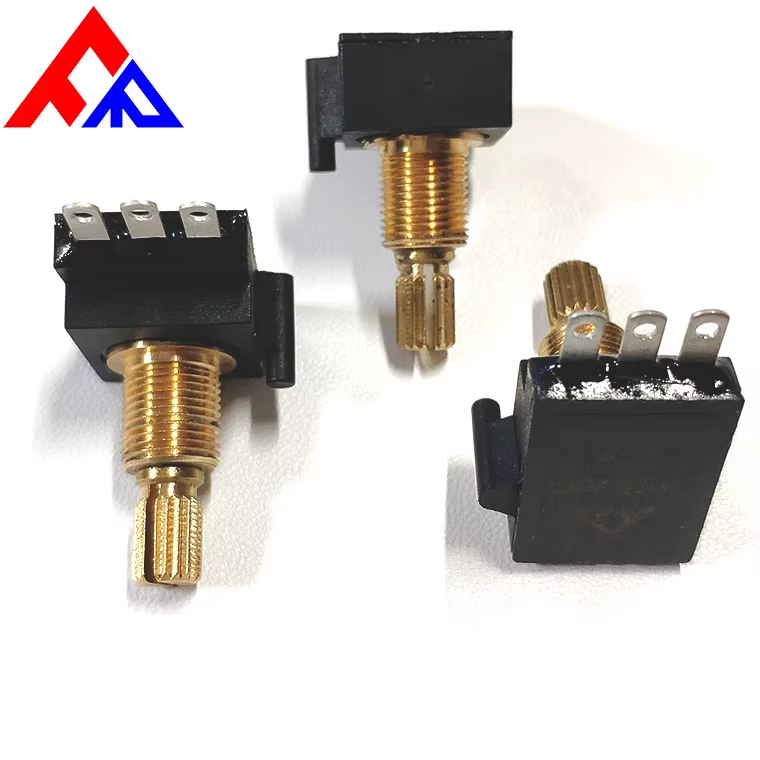

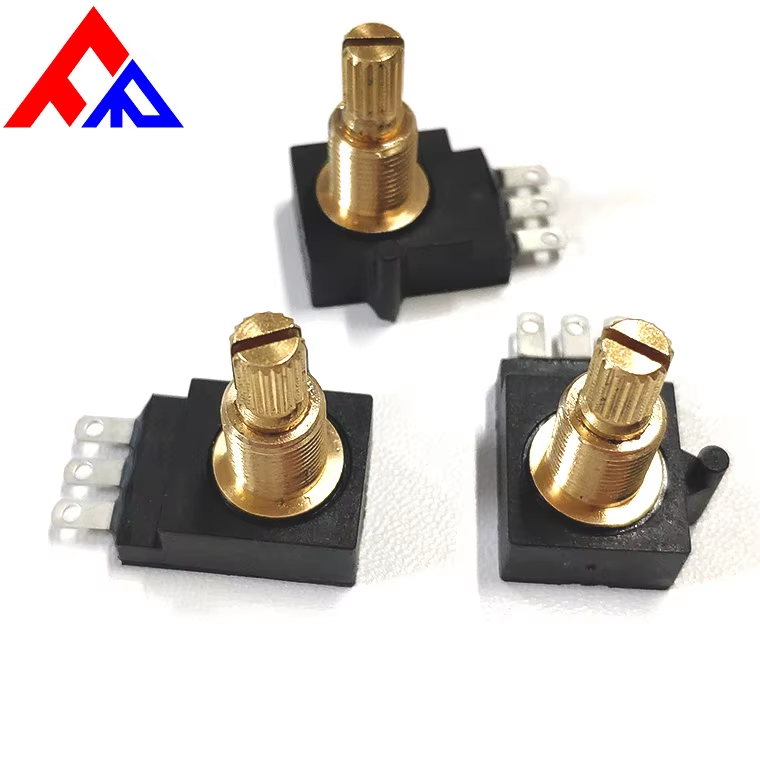

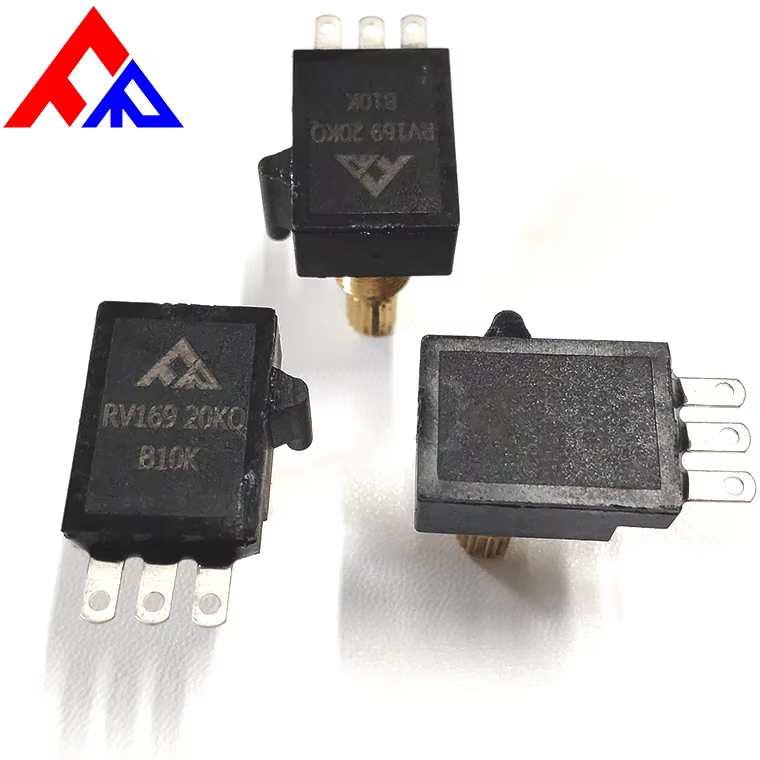

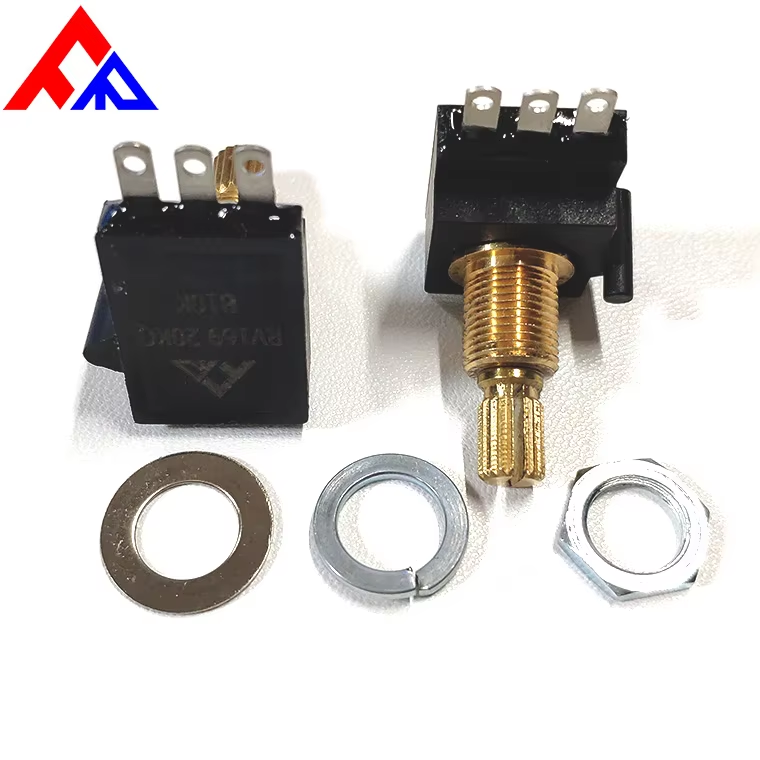

The product is a carbon film potentiometer with an overall dimension of 16mm. It is made from metal, plastic, and carbon film. Its operation involves top – finger rotation, which offers a soft and smooth feel.

Features

This potentiometer boasts a long lifespan and stable performance. It provides options for the shaft’s shape and length, as well as the circuit used and installation method, ensuring flexibility for different needs.

Applications and Functions

It can be applied in power amplifiers, stereos, household appliances, and industrial equipment. Its main functions include volume adjustment, voltage regulation, and temperature regulation, making it versatile across various devices.
