Name: Wholesale 29mm Insulated Handle Rotary Multi - way Switch for Amplifier
SKU: 15995
Price: 0.63 USD
Availability: InStock

Wholesale 29mm Insulated Handle Rotary Multi – way Switch for Amplifier

$0.63

Color：black
Size：29.4mm
Material：Metals and Plastics
Operating temperature：- 20 °C~70 °C
Rated power：DC30V
Swing life：10000 cycles
Rated Current：0.3A
Insulation resistance：100M Min
Rotational torque：700 – 1300gf.cm
Certification：RoHS / ISO9001 / IATF 16949/IATF16949 quality management system certification

Quantity

Discount (%)

Price

1 - 9

—

$0.63

10 - 99

4.76 %

$0.60

100 - 999

12.7 %

$0.55

1,000 - 9,999

23.81 %

$0.48

10,000+

31.75 %

$0.43

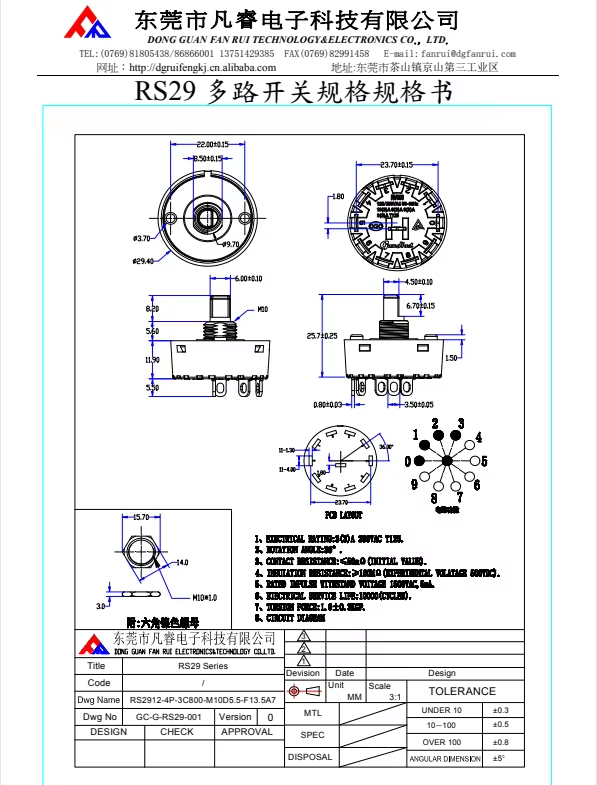

RS2912-4P-3C800-M10D5.5-F13.5A7-Specification-.pdf (16 downloads )

Basic Information

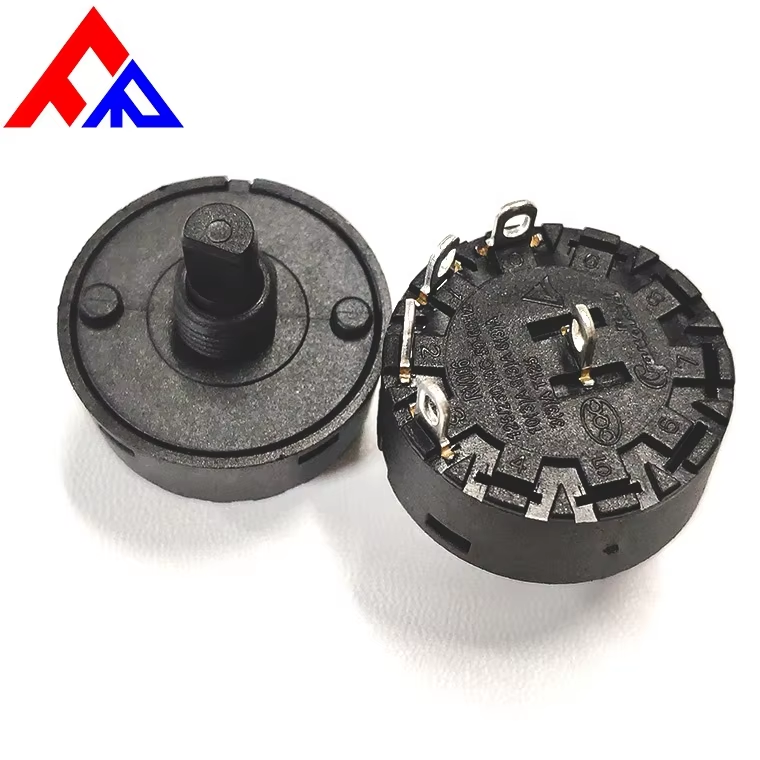

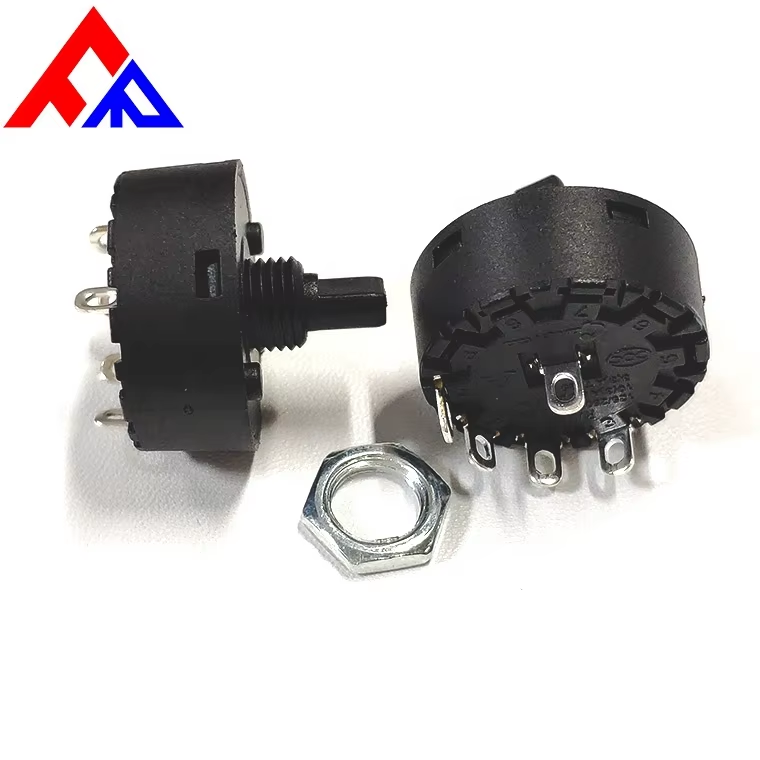

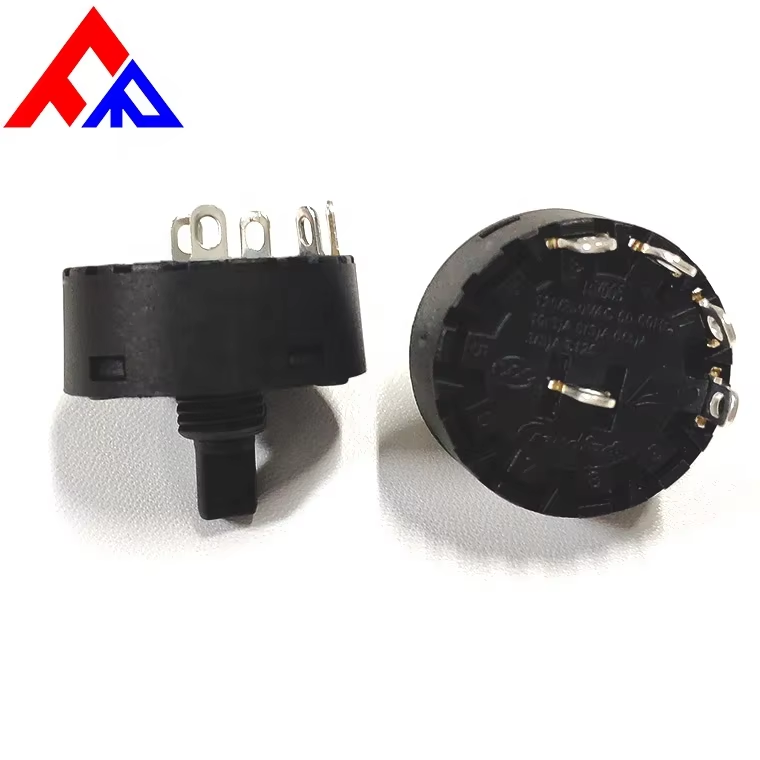

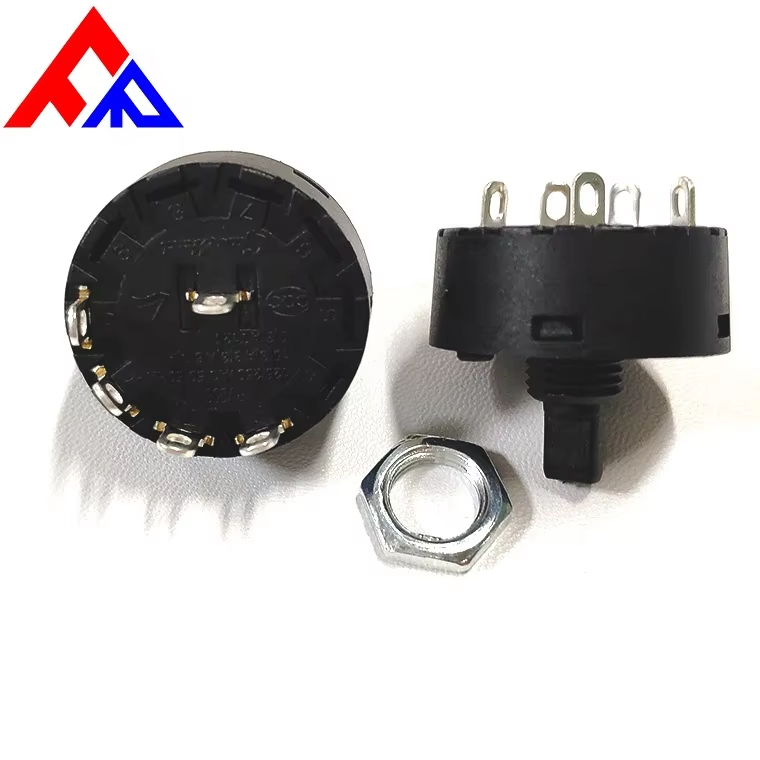

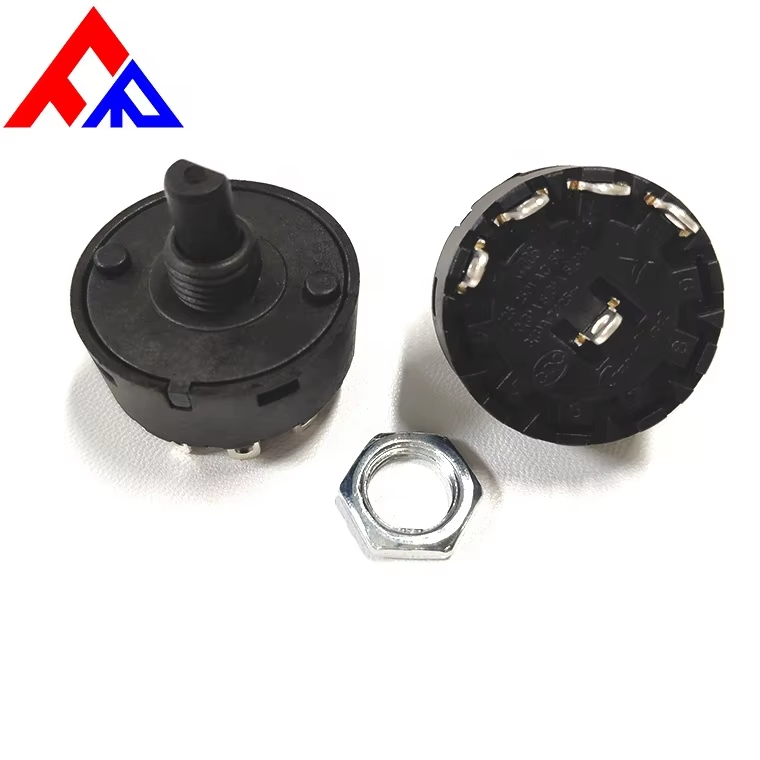

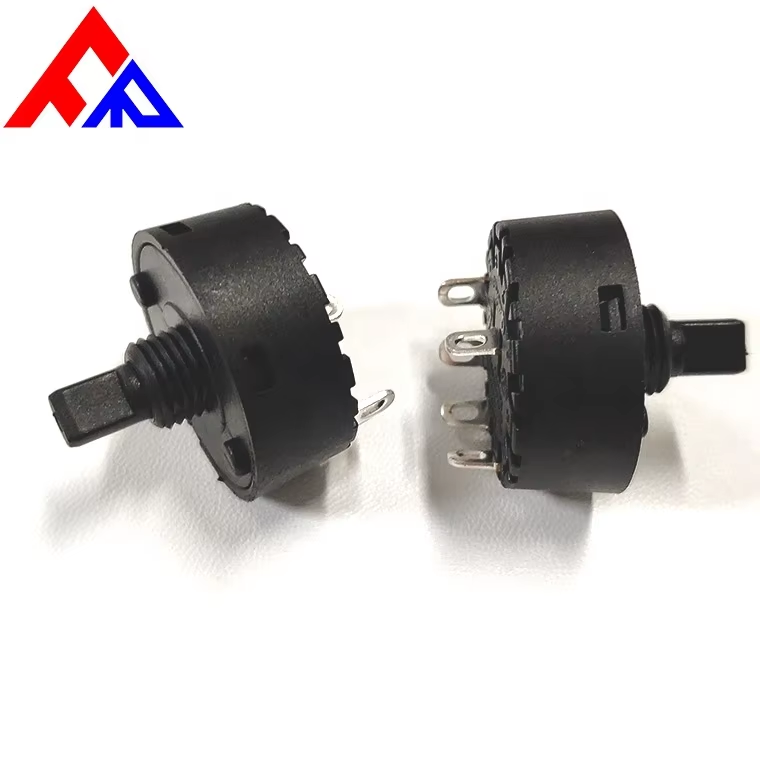

The product name is Multi – way switch, with an overall dimension of 29.4mm. The product is made of metal and plastic. When operating the top rotating handle, the rotation positions are clear and distinct.

Features

This multi – way switch has an insulated shaft handle. The number of poles can be selected from 1 to 4, and the gears can be adjusted from 2 to 12. The diverse parameter settings make it adaptable to various usage requirements.

Application Scenarios

This multi – way switch is suitable for a variety of devices, such as microwave ovens, automotive air conditioners, multimedia audio/power amplifiers, and various other household appliances, playing a role in daily – life electrical equipment.

Main Functions

The multi – way switch can mainly achieve functions such as function switching, speed regulation, and temperature regulation, meeting the control needs of different electrical appliances in different usage scenarios.
