Name: Rotary Potentiometer Rheostat for Sound Amplifier Tuning, Dimming Switch and Voltage Control
SKU: 15755
Price: 0.85 USD
Availability: InStock

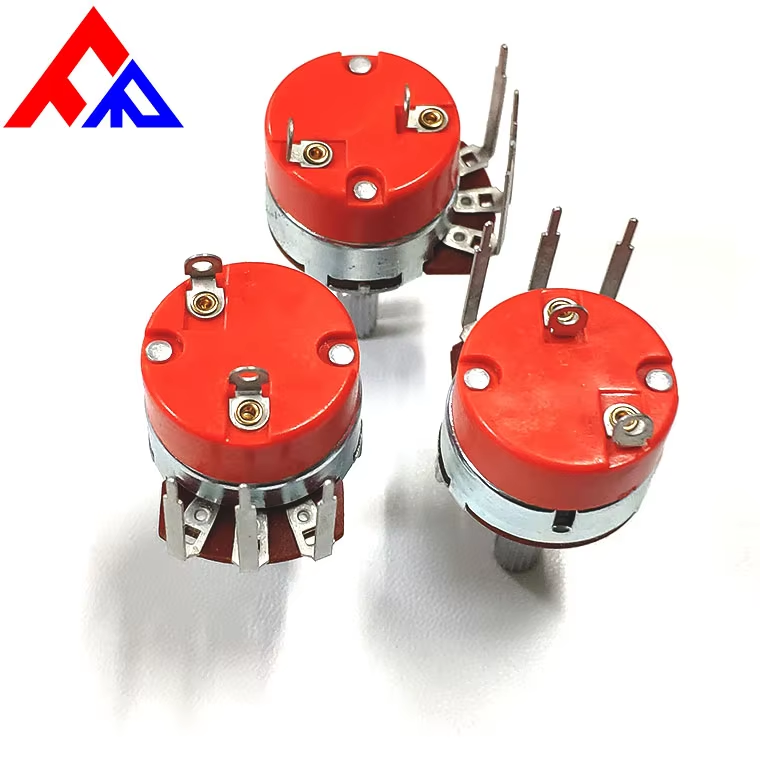

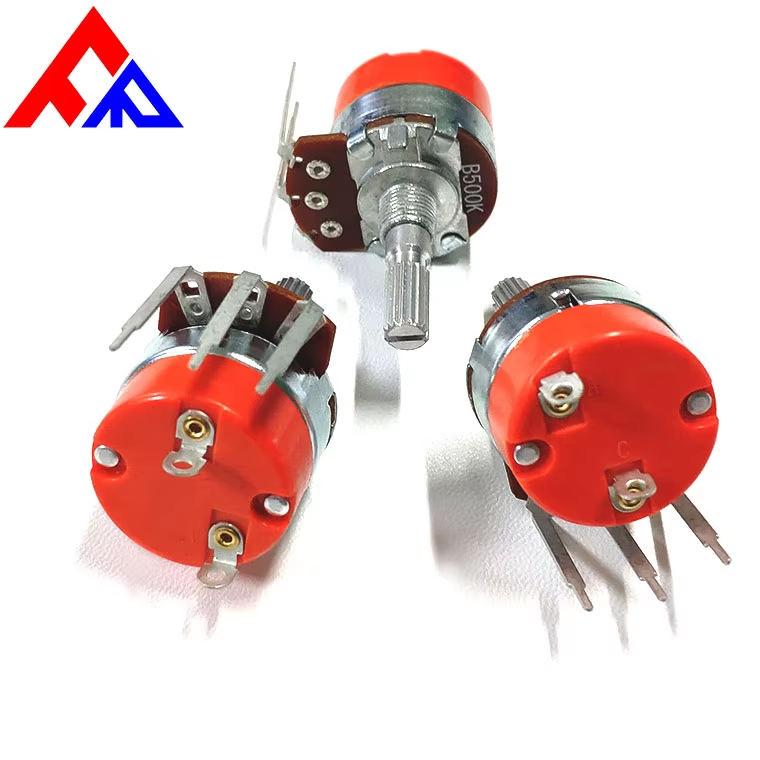

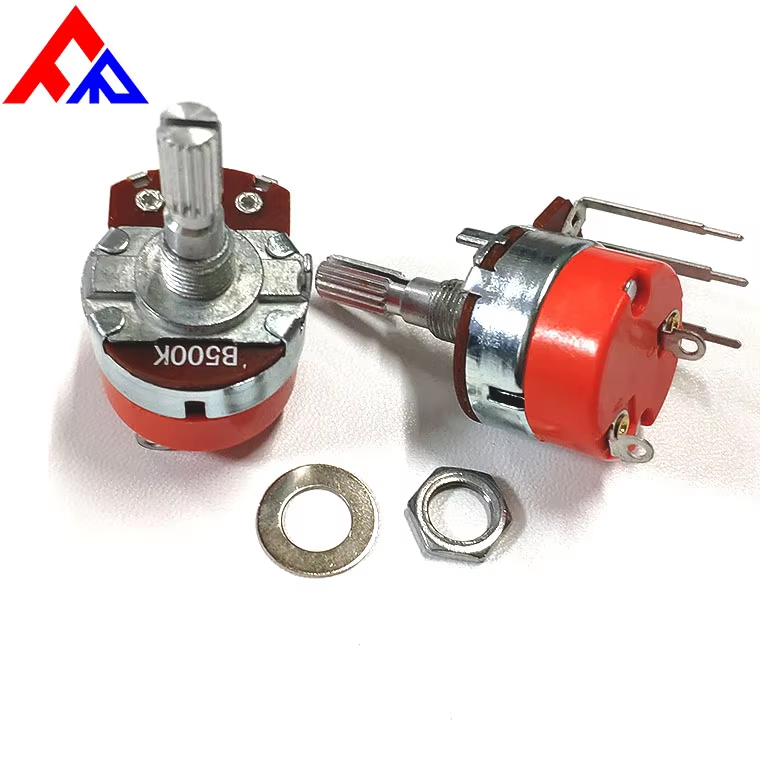

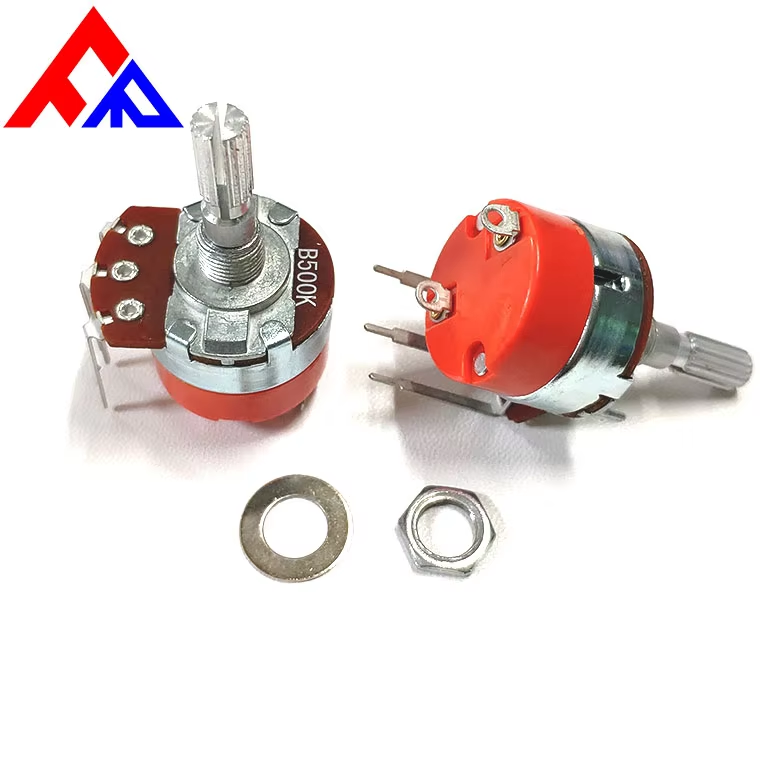

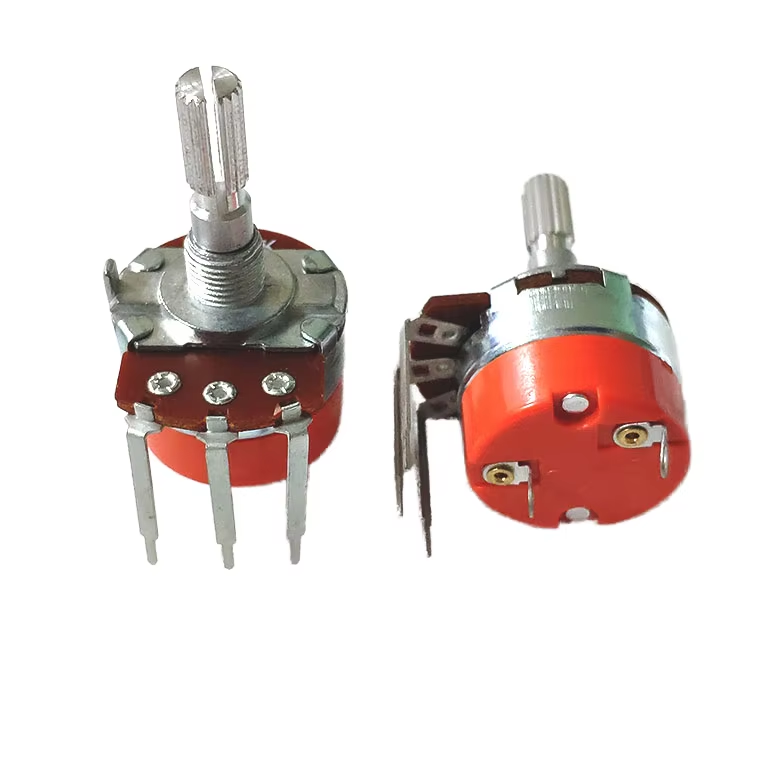

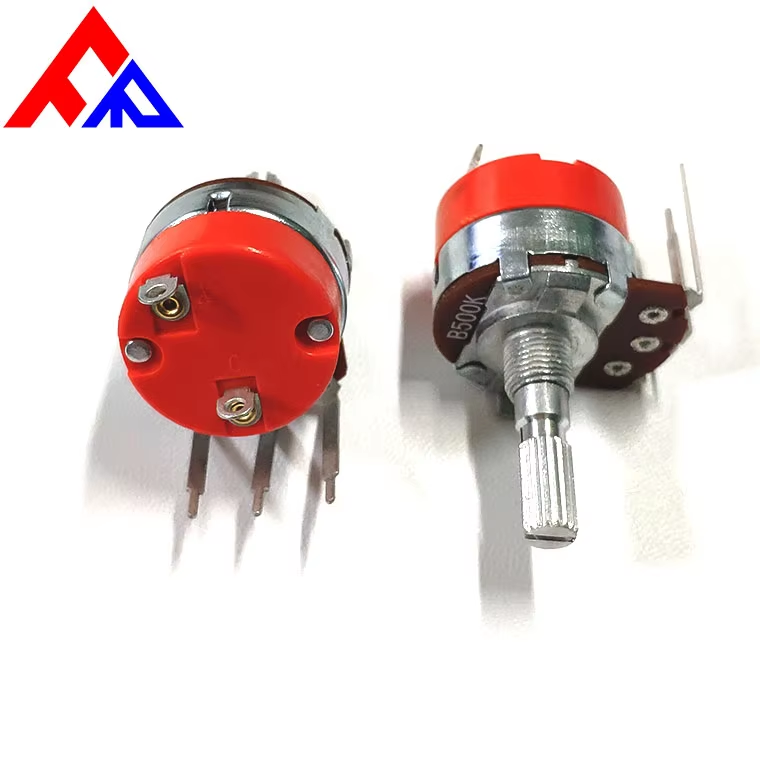

Rotary Potentiometer Rheostat for Sound Amplifier Tuning, Dimming Switch and Voltage Control

$0.85

Dimensions: 24.00mm
material: Metals and Plastics
Operating temperature: – 20 °C~+70 °C
Operating Voltage: AC 500V
Swing life: 15000 cycles
load power: 0.5w
Insulation Resistance: DC500V 100M Min
Certification: ISO9001
Withstand Voltage: 500V AC 1 Minute
Feature: Rotary
Process: Carbon Film
Built – in Switch: None
Actuator Type: Knurled and Slotted
Adjustment Type: Top Finger Adjustment
Number of Turns: 1.0
Bushing Thread: m8x0.75
Terminal: PC Pins

Quantity

Discount (%)

Price

1 - 9

—

$0.85

10 - 99

2.35 %

$0.83

100 - 999

7.06 %

$0.79

1,000 - 9,999

10.59 %

$0.76

10,000+

18.82 %

$0.69

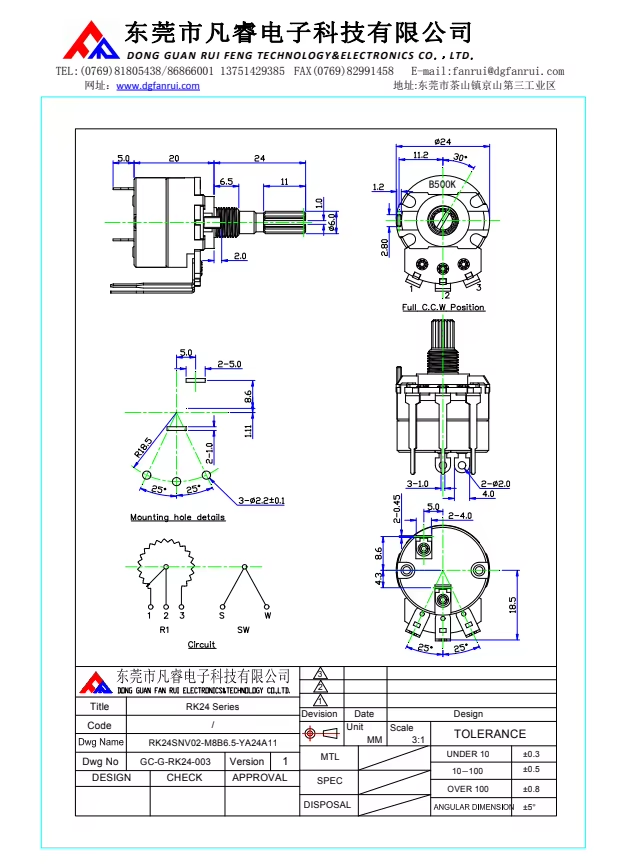

RK24SNV02-M8B6.5-YA24A11-B500K±20-Specification.pdf (28 downloads )

Overview

The Rotary potentiometer is a versatile component. With dimensions of 24mm, it is crafted from a combination of metal, plastic, and carbon film. Its operation characteristics shine with top – finger rotation, offering a soft and smooth feel during use. This physical design ensures easy and precise adjustment for users.

Impressive Features

This potentiometer stands out for its stable performance. It also comes equipped with a rotary switch function, providing added functionality. Moreover, the flexibility in shaft shape and length options allows for greater adaptability to different application requirements, making it a practical choice for various setups.

Wide – ranging Applications

The applications of the Rotary potentiometer are extensive. It is well – suited for use in sound amplifiers, water heaters, and other household appliances. Its main functions, including volume adjustment, temperature adjustment, pressure adjustment, dimming, and speed regulation, make it an essential part in these devices, enhancing user control and device performance.
