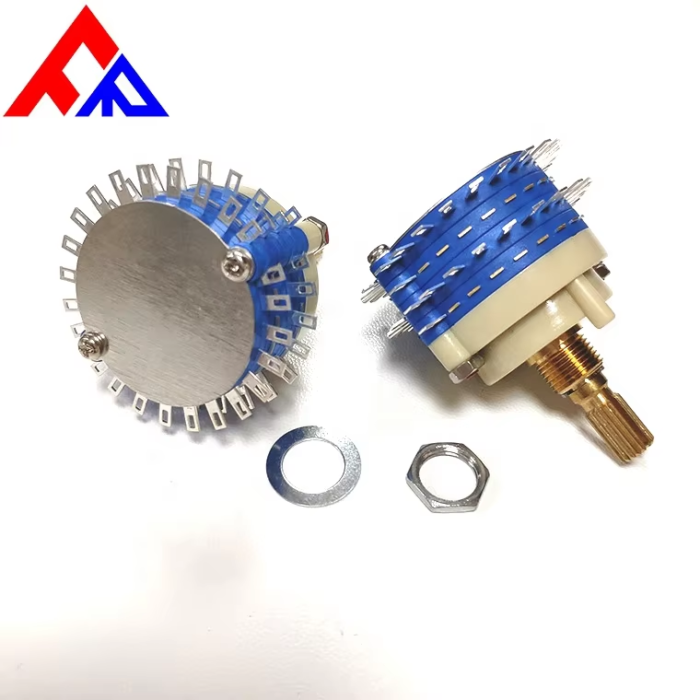

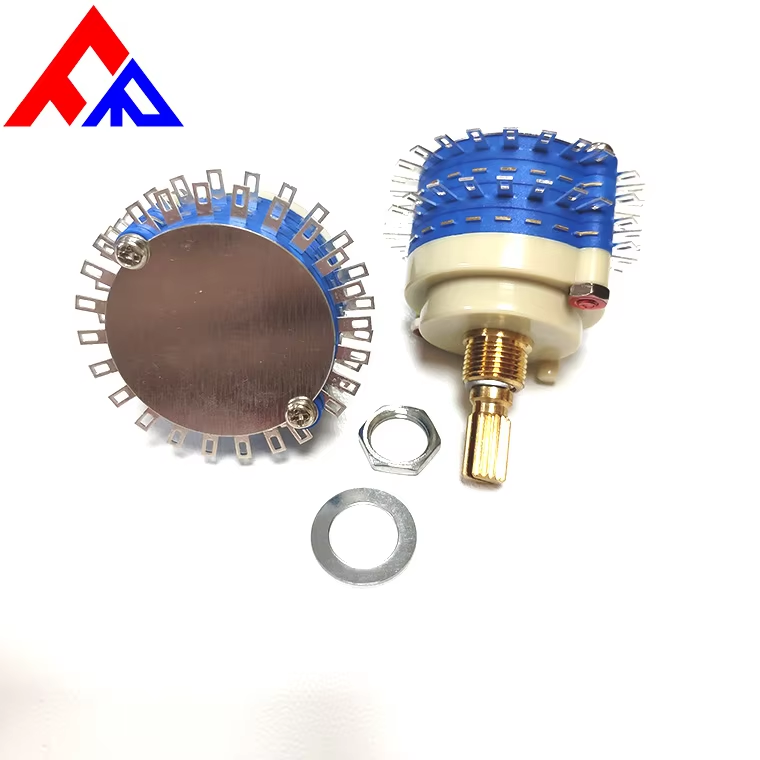

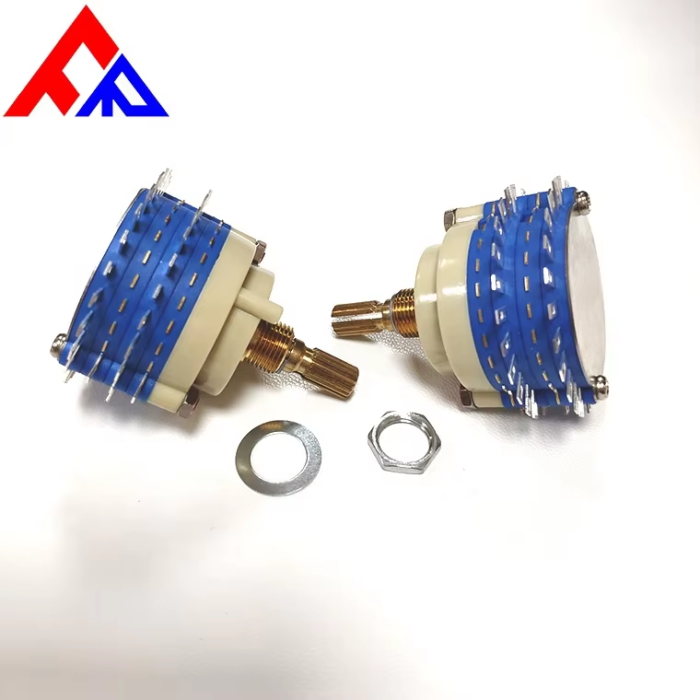

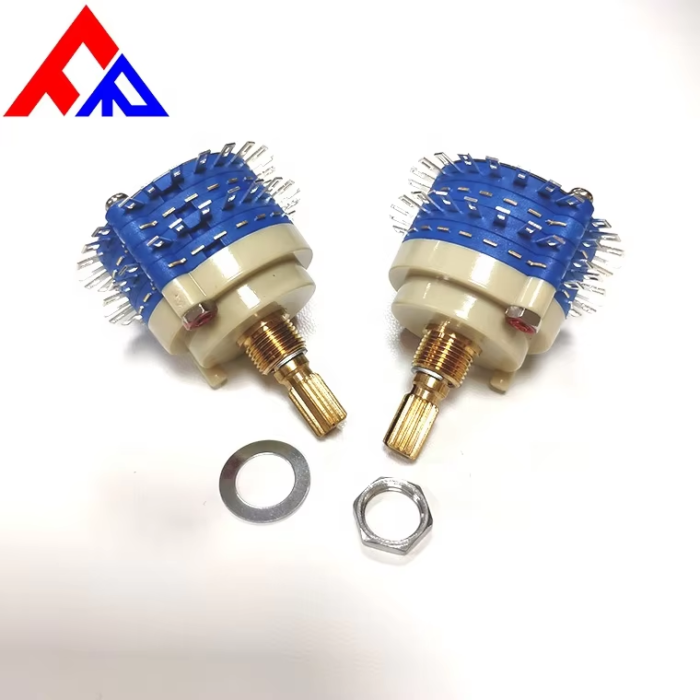

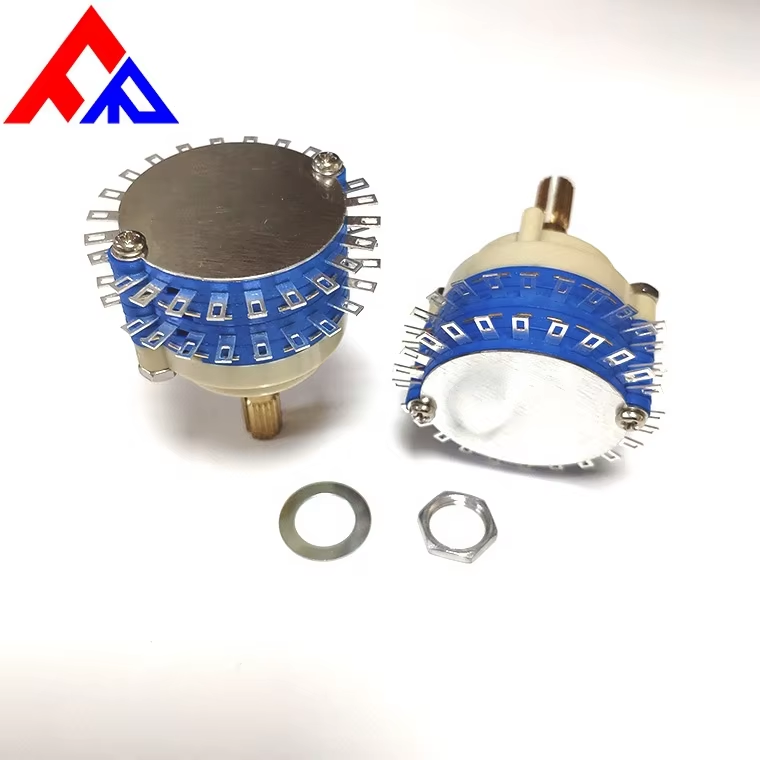

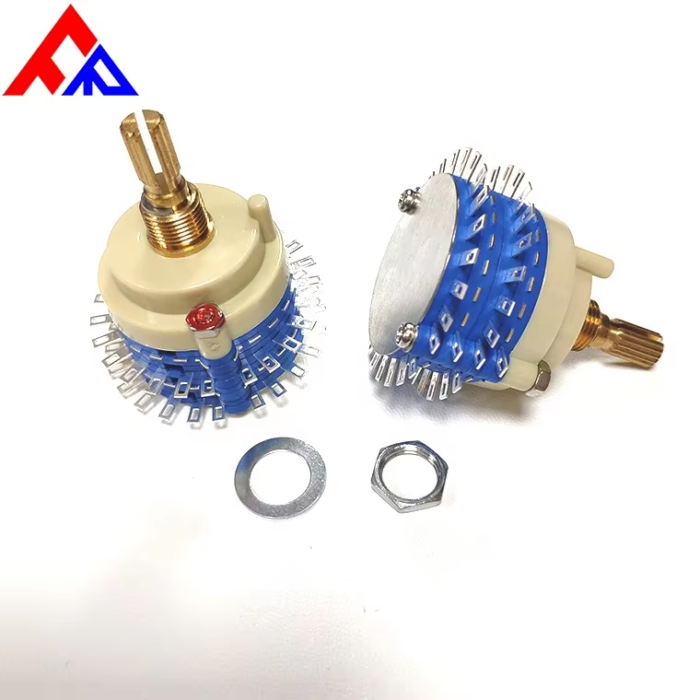

New Custom Metal Knurled Shaft 29 mm 2-pole Multi-layer 24-bit Rotary Switch and Position Switch

$3.50

颜色：蓝色
材质：金属和塑料
操作温度：- 150 °C~+70 °C
额定功率：DC30V
旋转寿命：5000 次
额定电流：0.5/0.3A
旋转扭矩：500 200gf.cm
绝缘电阻：500VDC 100M Min
服务：接受定制
认证：ISO9001/ISO14001/ISO13485/IATF16949

Quantity	Discount (%)	Price
1 - 9	—	$3.50
10 - 99	—	$3.50
100 - 999	14.29 %	$3.00
1,000 - 9,999	34.29 %	$2.30
10,000+	45.71 %	$1.90

Categories: Electronic Accessories, Switches, Rotate Move it Button Switch

Description
Reviews (0)

Description

This multi-position switch measures 29mm and is made of metal and plastic. It’s easy to operate, allowing 360° rotation via finger adjustment at the top to meet diverse operation needs.

Product Features and Advantages

With excellent performance, this switch has a shaft sleeve locking function for position accuracy and stability. It offers single-pole and double-pole options, with a speed range of 2 to 24 levels. You can select the shaft’s shape and length as needed, enhancing its practicality and flexibility.

Application Scenarios and Functions

Suitable for household appliances like power amplifiers and audio devices, it can adjust volume and brightness, enabling users to customize settings for a more convenient daily life.
