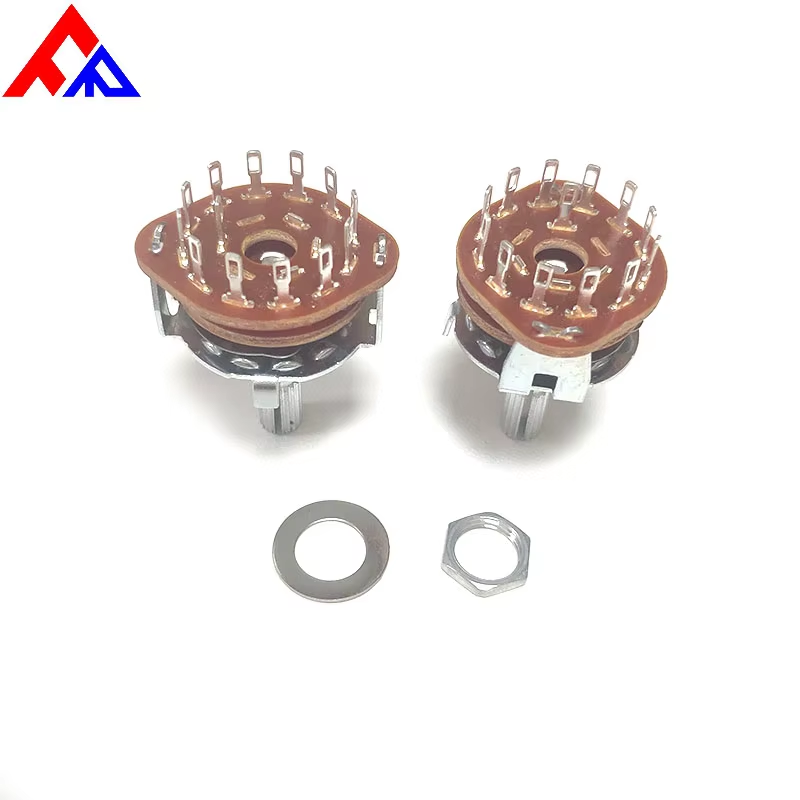

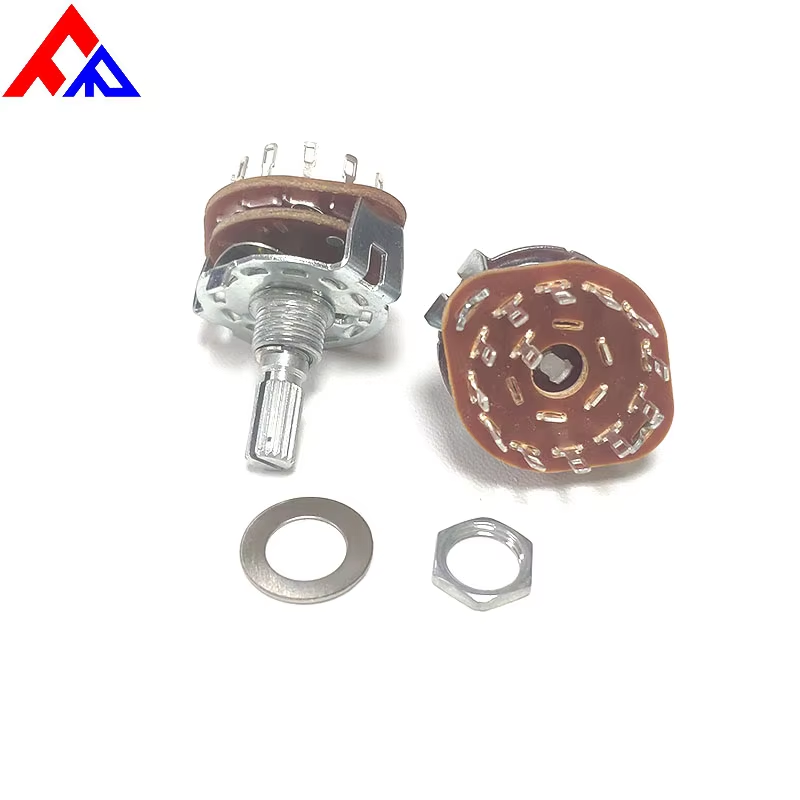

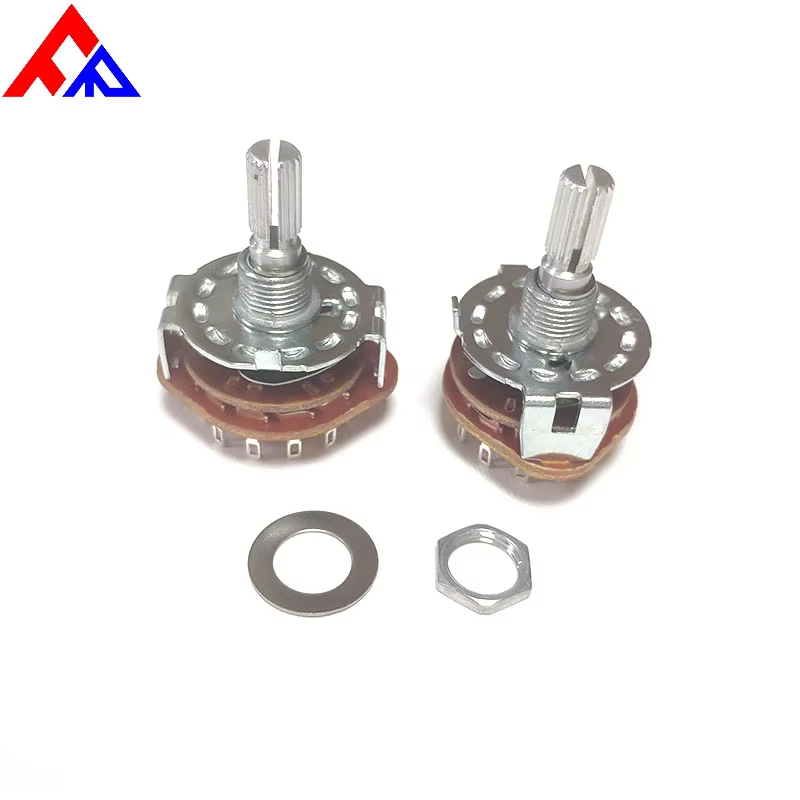

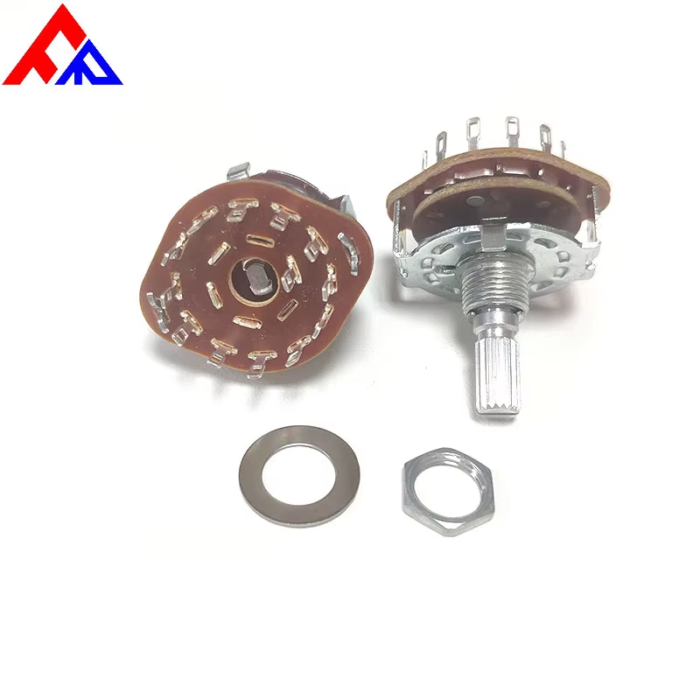

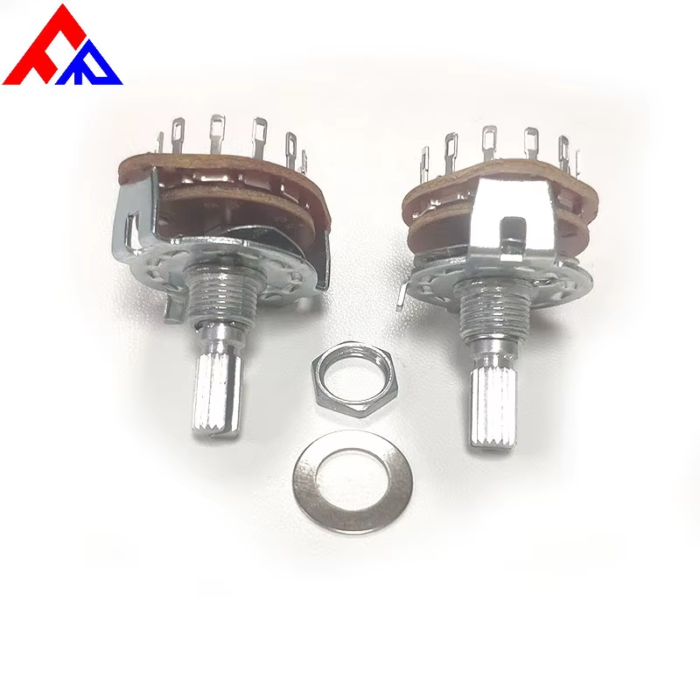

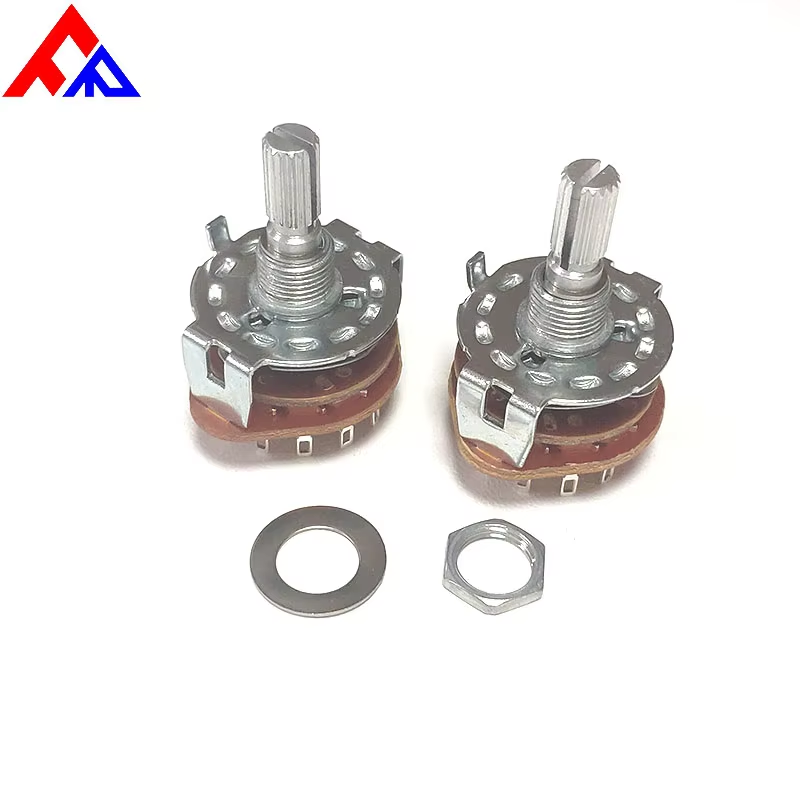

Name: High Stability 1-pole 2-pole 2/3/4/5/6/7/8/9/10/11/12 Position Selection Switch and Rotary Switch
SKU: 15742
Price: 0.85 USD
Availability: InStock

High Stability 1-pole 2-pole 2/3/4/5/6/7/8/9/10/11/12 Position Selection Switch and Rotary Switch

$0.85

Size: 25mm
Material: Metals and Plastics
Operating temperature: – 10 °C~+70 °C
Rated power: DC30V
Swing life: 10000 cycles
Contact resistance: 300mΩ Max
Insulation resistance: 100M 500VDC
ROTATIONAL TORQUE: 600~1000gf.cm
Certification: ISO9001/ISO14001/ISO13485/IATF16949

Quantity

Discount (%)

Price

1 - 9

—

$0.85

10 - 99

2.35 %

$0.83

100 - 999

7.06 %

$0.79

1,000 - 9,999

17.65 %

$0.70

10,000+

23.53 %

$0.65

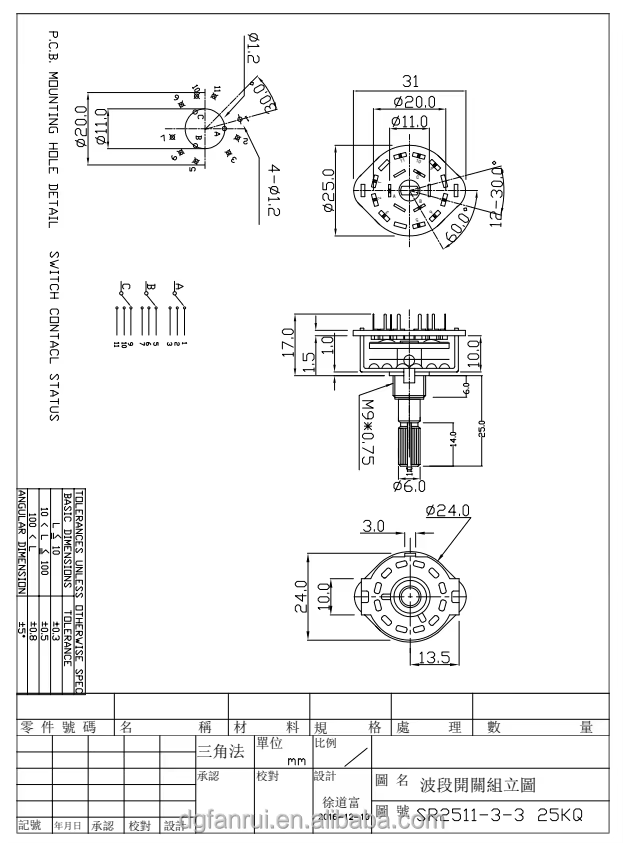

RS25-Specification-.pdf (15 downloads )

Overview

The Multi – way switch is a versatile device with an overall dimension of 25mm. Crafted from a combination of metal and plastic, it ensures durability and functionality. Its top – finger rotation offers a distinct sense of rotation and precise positioning, making operation intuitive.

Features

This switch stands out with a metal shaft handle. It is adjustable for 2 – 12 gears, and the shaft shape and length can be customized. Such flexibility makes it suitable for a wide range of applications.

Applications and Functions

The Multi – way switch finds its use in various scenarios, including multimedia audio systems, power amplifiers, and medical equipment. Its main functions cover function switching, temperature regulation, timing, and speed regulation, providing essential control and adjustment capabilities in these applications.
