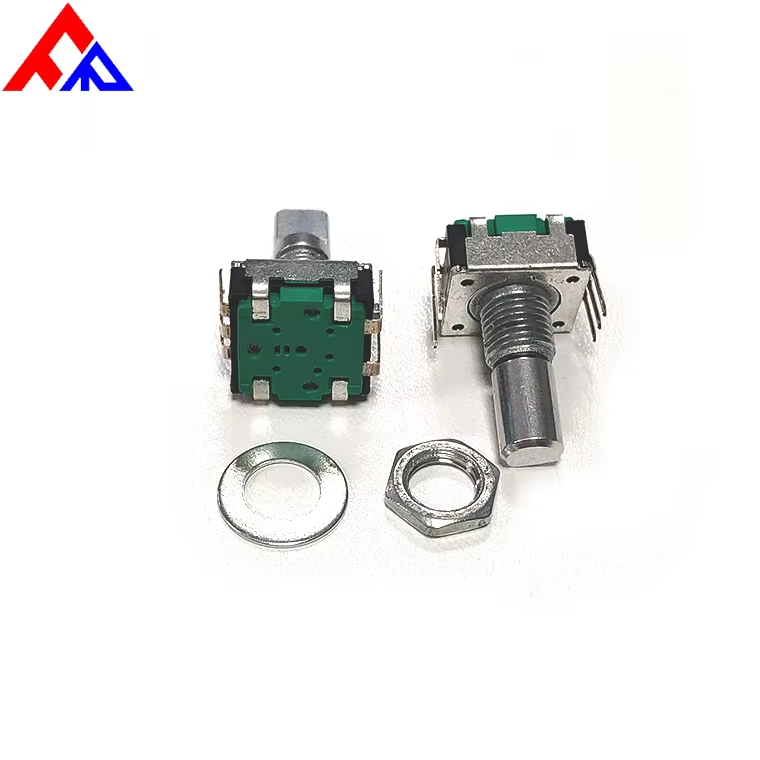

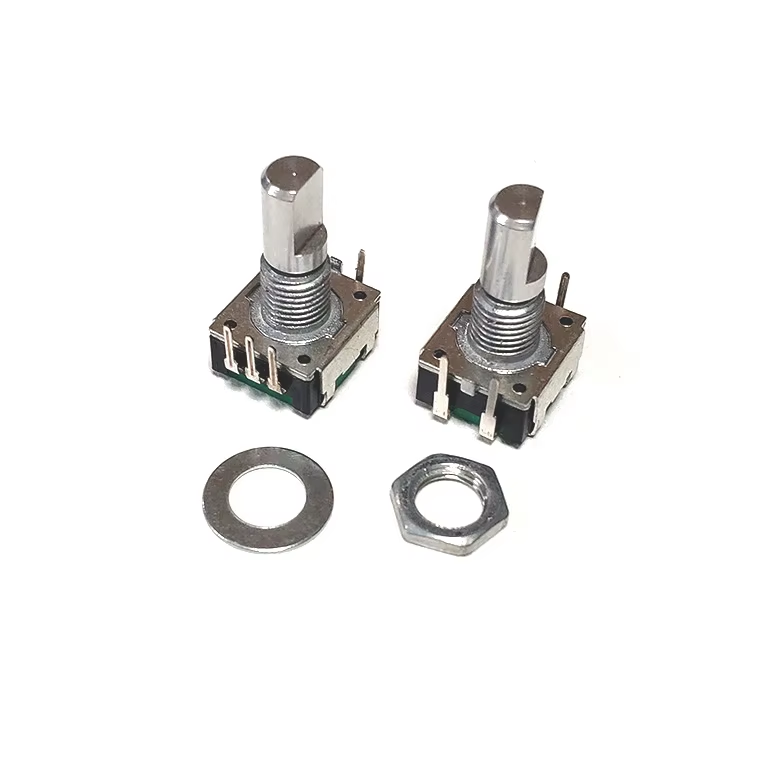

Name: EC12 Vertical Rotary Digital Encoder Switch with Metal Handle PEC12 Incremental Mini Encoder
SKU: 15801
Price: 0.39 USD
Availability: InStock

EC12 Vertical Rotary Digital Encoder Switch with Metal Handle PEC12 Incremental Mini Encoder

$0.39

color：black
Dimensions：12.5mm
Material：Metals and Plastics
Operating temperature：- 20 °C~+80 °C
Rated power：DC5V
Slewing life：30000 cycles
Output signal：12pulses/18pulses/24pulses/360°for each phase
Output circuit：Voltage Output
Shaft Diameter：6mm
Certificate：ISO9001/ISO14001/ISO13485/IATF16949

Quantity

Discount (%)

Price

1 - 9

—

$0.39

10 - 99

2.56 %

$0.38

100 - 999

10.26 %

$0.35

1,000 - 9,999

25.64 %

$0.29

10,000+

35.9 %

$0.25

ED1232S-24P-24C60-M7B5-F15A7-ED1232S-12P-1-specification-2-1.pdf (18 downloads )

Product Basic Information

The Rotary Encoder has a dimension of 12.5mm. Its product materials consist of metal and plastic. It is operated by top – finger adjustment, allowing for 360° rotation, and is equipped with an instantaneous button switch.

Product Outstanding Features

This rotary encoder boasts several advantageous features. It has a small volume, facilitating installation and use. It offers good sealing performance, effectively protecting against external dust, moisture, and other interferences. With high reliability, it can operate stably. Additionally, a variety of different specifications are available for customers to choose according to their needs.

Wide – ranging Application Scenarios

In terms of practical applications, the rotary encoder is suitable for the automotive field, such as car audio systems, car air – conditioners, and car navigation systems. It can also function in household appliances and related electronic devices, meeting diverse industrial and daily – life application requirements.

Display of Main Functions

The rotary encoder mainly undertakes functions such as volume adjustment and temperature adjustment. It can accurately control the parameters of relevant devices, providing users with a convenient and stable operating experience, and effectively enhancing the performance of the devices in use.
