Audio games steering wheel potentiometer and potentiometer from professional manufacturers

$0.75

Dimensions: 17.00mm
Material: Metals and Plastics
Operating temperature: -20 °C~+70 °C
Operating Voltage: AC 500V
Slewing life: 500000 cycles
Load power: 0.2w
Insulation resistance: 100 M
Rotary: Single
Key words: Rotary Potentiometer 10K 50K 100K

Quantity	Discount (%)	Price
1 - 9	—	$0.75
10 - 99	6.67 %	$0.70
100 - 999	20 %	$0.60
1,000 - 9,999	33.33 %	$0.50
10,000+	73.33 %	$0.20

Categories: Potentiometer Variable Resistor, Rotary potentiometer, sliding potentiometer

Description
Reviews (0)

Description

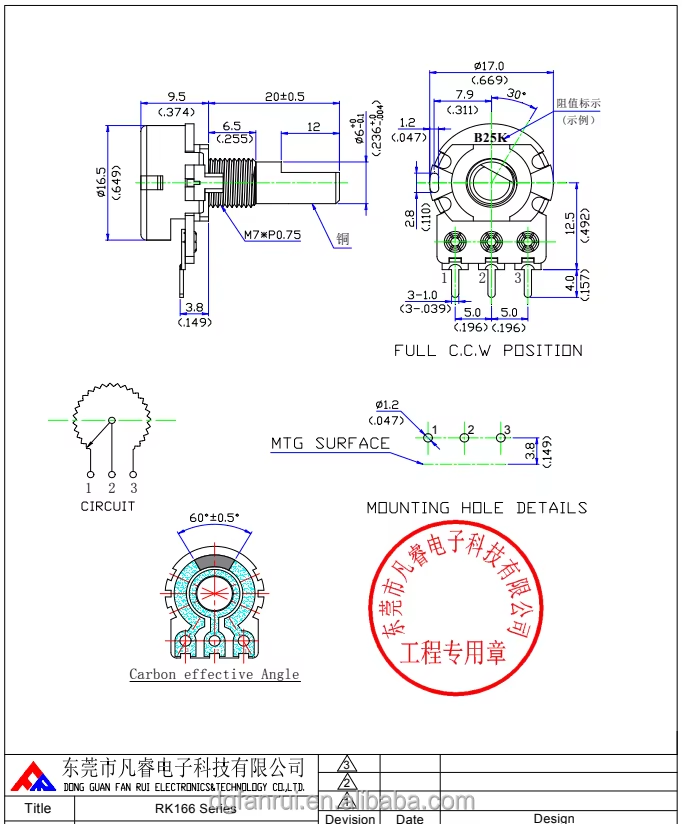

RK166NH01-M7B6.5-FC20A12-B25K60°±20-L1-Specification-.pdf (43 downloads )

Basics

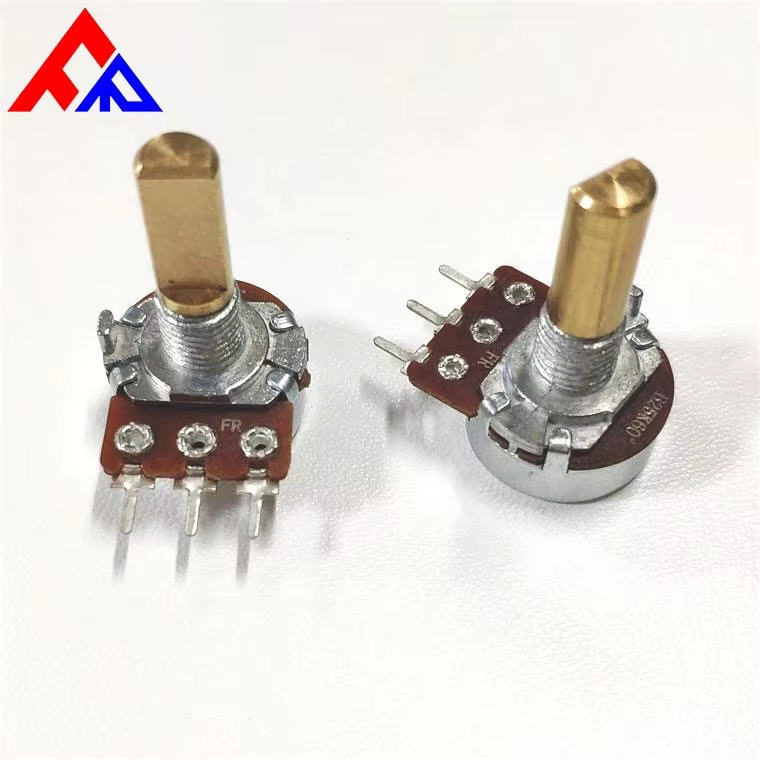

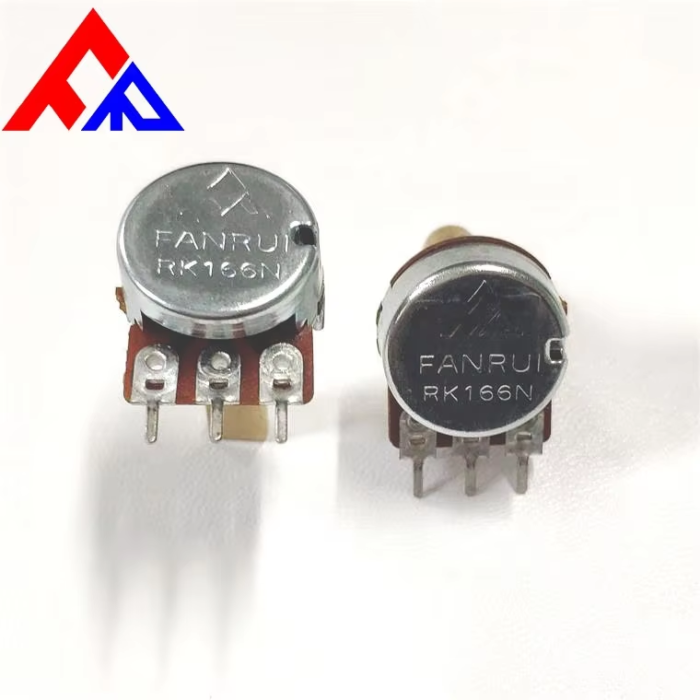

The product is an Angle Potentiometer. It has an external dimension of 17mm. The materials used include metal, plastic, and carbon film. Its operating characteristics feature top – finger operation with a soft and smooth feel.

Advantages

This potentiometer boasts reliable and stable quality, ensuring a long service life. It comes with a metal copper shaft, and offers options for shaft shape and length size selection.

Application Scenarios

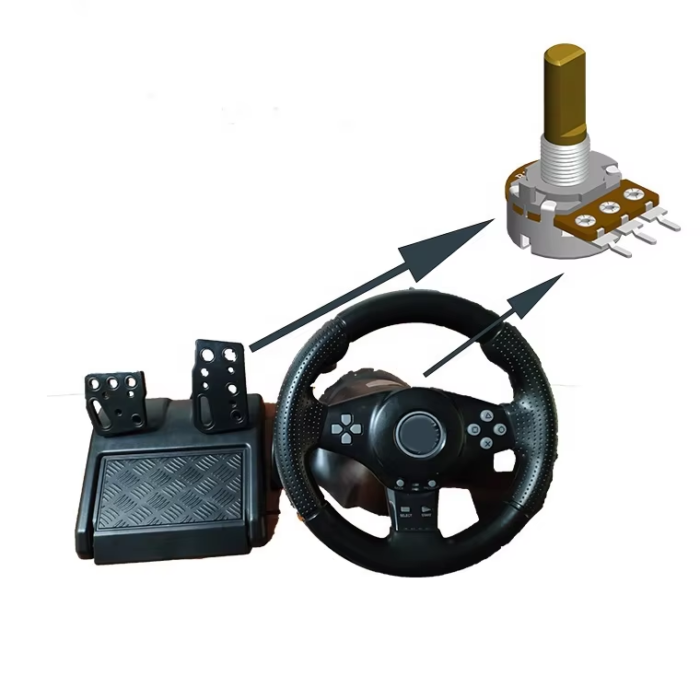

It is suitable for various multimedia electronic devices. Ideal for use in simulated racing steering wheels, it can also be applied in simulated pedal adjustment and control, mainly performing functions like adjustment of speed, direction, and angle.
