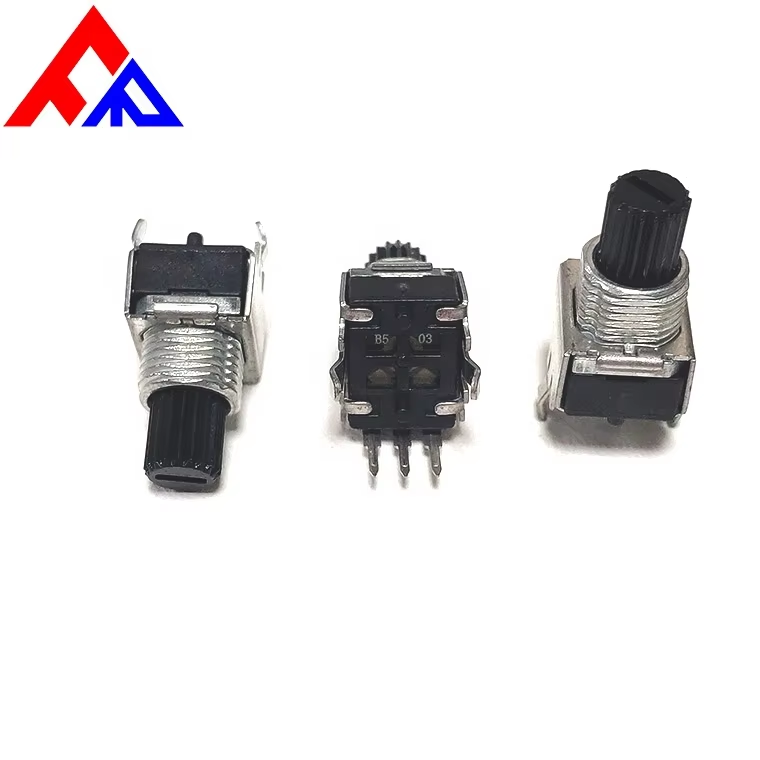

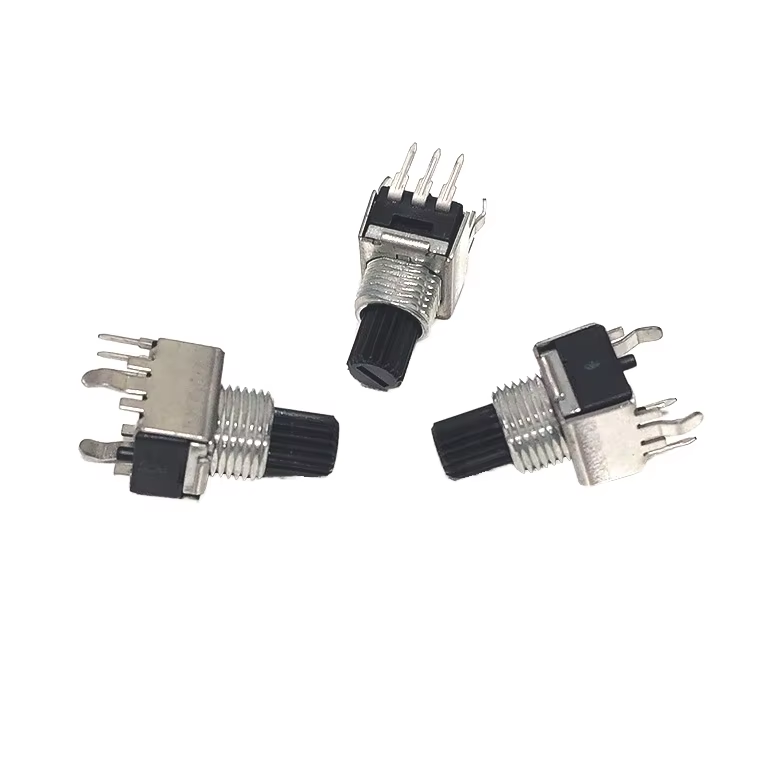

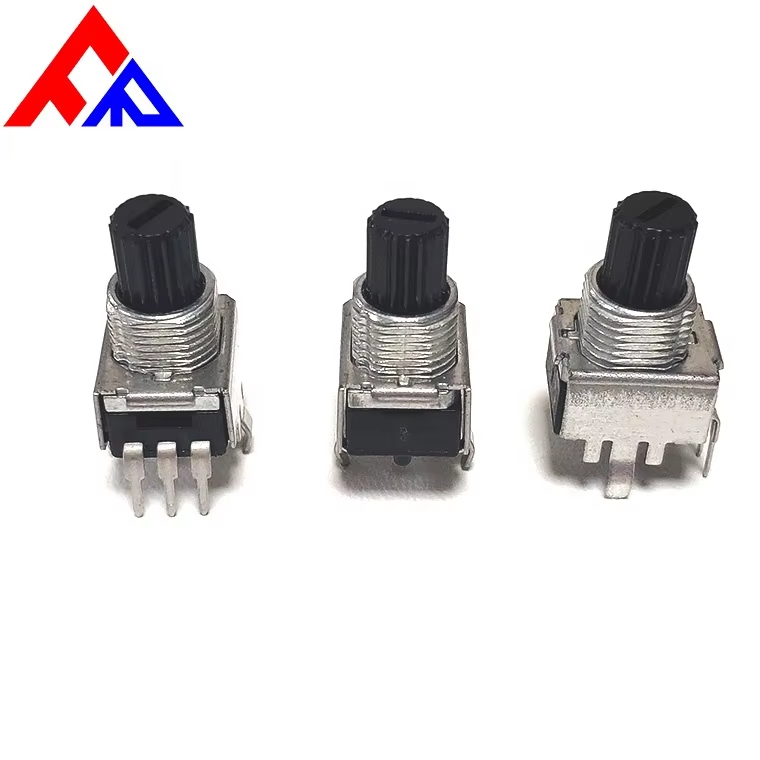

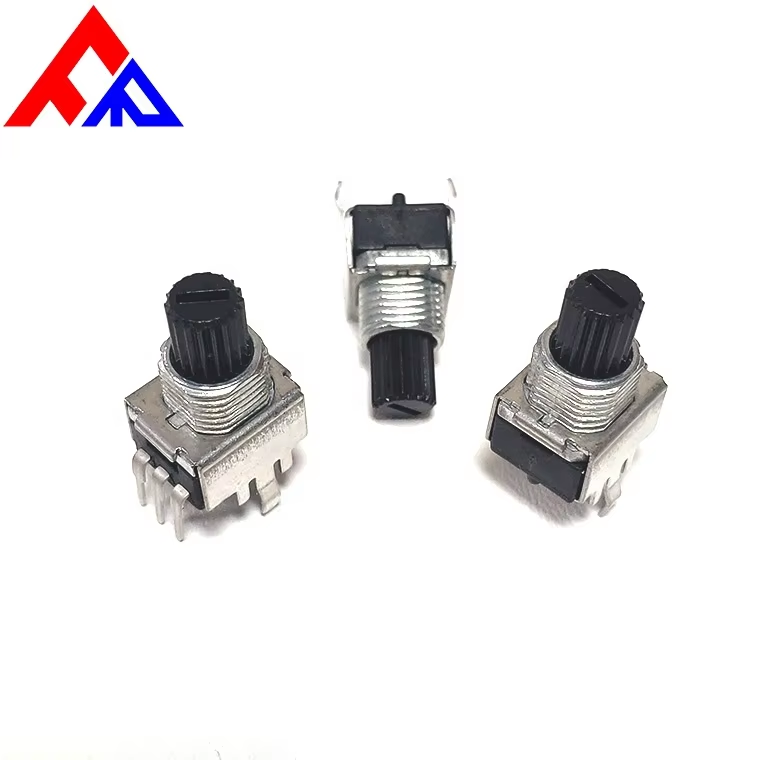

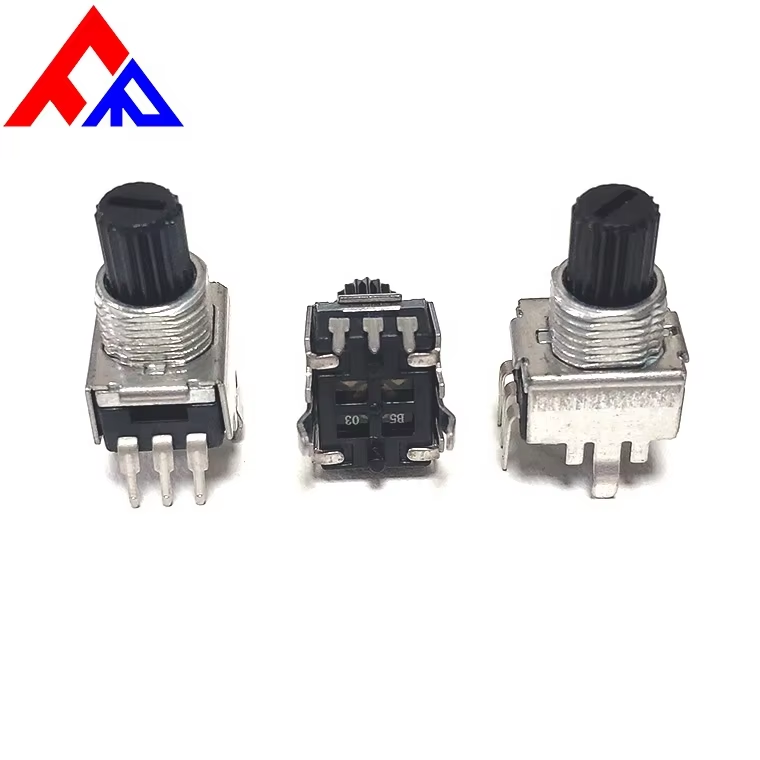

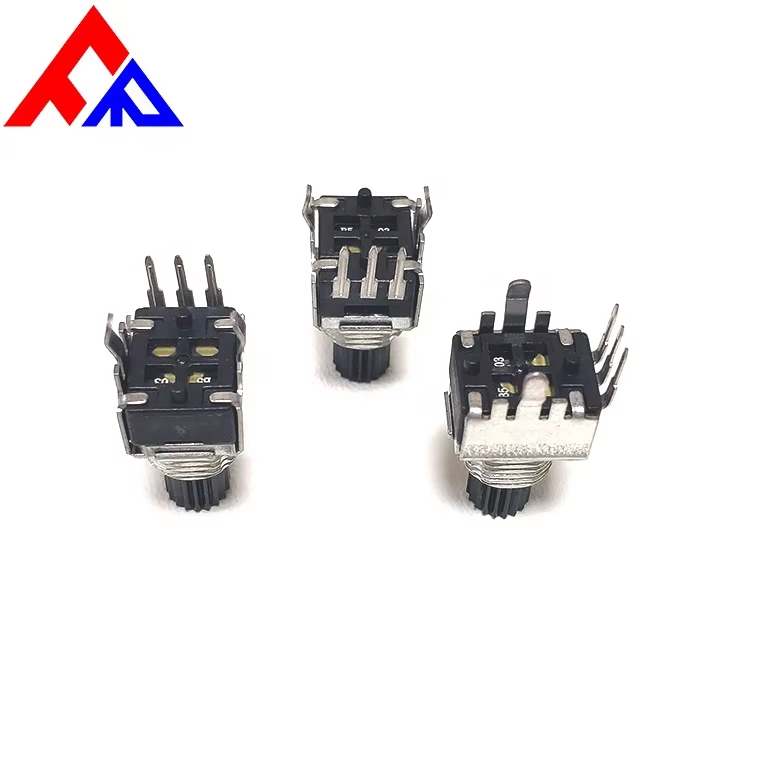

Name: PTV09 3-pin Insulated Shaft Volume Rotary Potentiometer
SKU: 16023
Price: 0.49 USD
Availability: InStock

PTV09 3-pin Insulated Shaft Volume Rotary Potentiometer

$0.49

color：black
Dimensions：10mm
material：Metals and Plastics
Operating temperature：- 20 °C~+70 °C
Operating Voltage：DC20V
Swing life：15000 cycles
load power：0.05w
Certification：ISO9001/ISO14001/ISO13485/IATF16949
INSULATION RESISTANCE：100M
Advantage：Manufacturer

Quantity

Discount (%)

Price

1 - 9

—

$0.49

10 - 99

2.04 %

$0.48

100 - 999

8.16 %

$0.45

1,000 - 9,999

18.37 %

$0.40

10,000+

26.53 %

$0.36

RK093NV01-FTD25A12-B50K±20-FR-Specification--1.pdf (19 downloads )

Basic Product Information

The product name is Rotating potentiometer, with a dimension of 10mm. It is made of metal, plastic, and carbon film. The combination of these materials lays the foundation for the product’s performance.

Operational Characteristics

The Rotating potentiometer has unique operational characteristics. It supports top – finger adjustment, and offers a soft and smooth rotating feel, providing users with a comfortable operating experience.

Product Advantages and Features

This potentiometer is equipped with a plastic insulated shaft, ensuring stable performance. Moreover, the shaft’s shape, length, and installation method can be selected as needed, which provides high flexibility and makes it suitable for various complex scenarios.

Application Fields and Main Functions

The Rotating potentiometer has a wide range of applications, covering mixers, multimedia audio, amplifier audio, and various household appliances. Its main functions include adjusting volume, balancing pressure, temperature, and other related functions, meeting diverse needs in different scenarios.
