Name: Precision Carbon Film Rotary Potentiometers and Rheostats
SKU: 15782
Price: 1.79 USD
Availability: InStock

Precision Carbon Film Rotary Potentiometers and Rheostats

$1.79

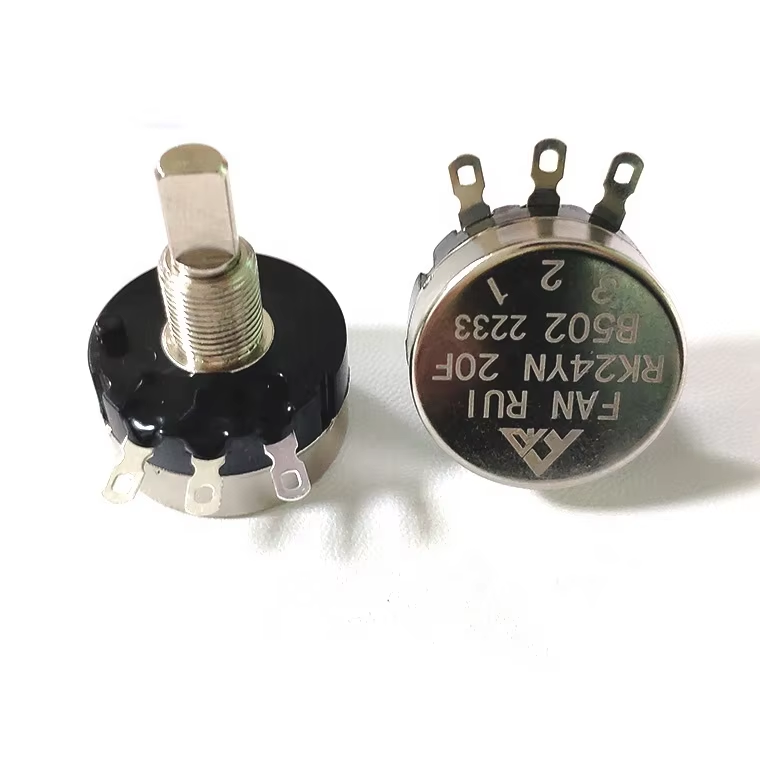

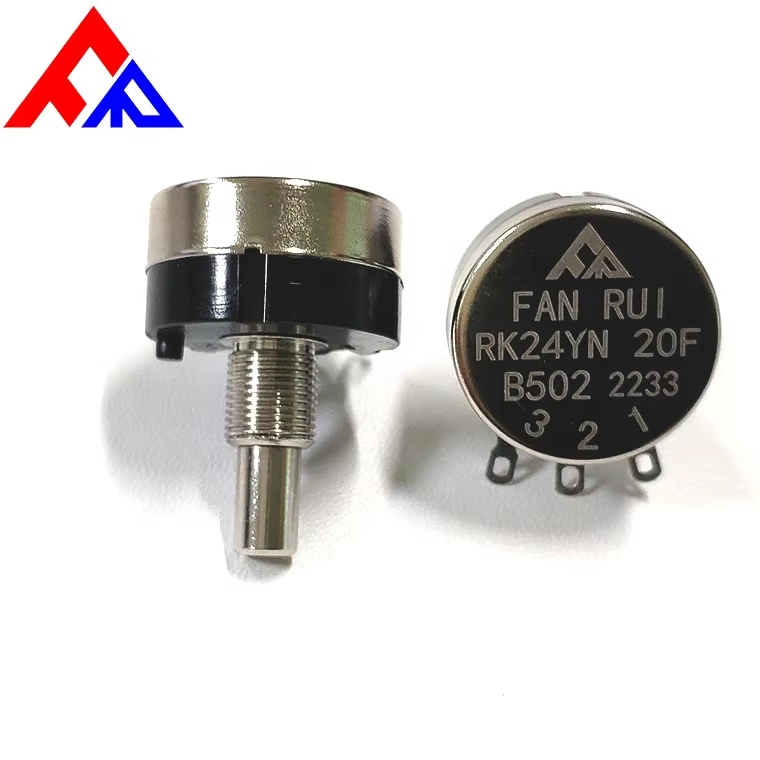

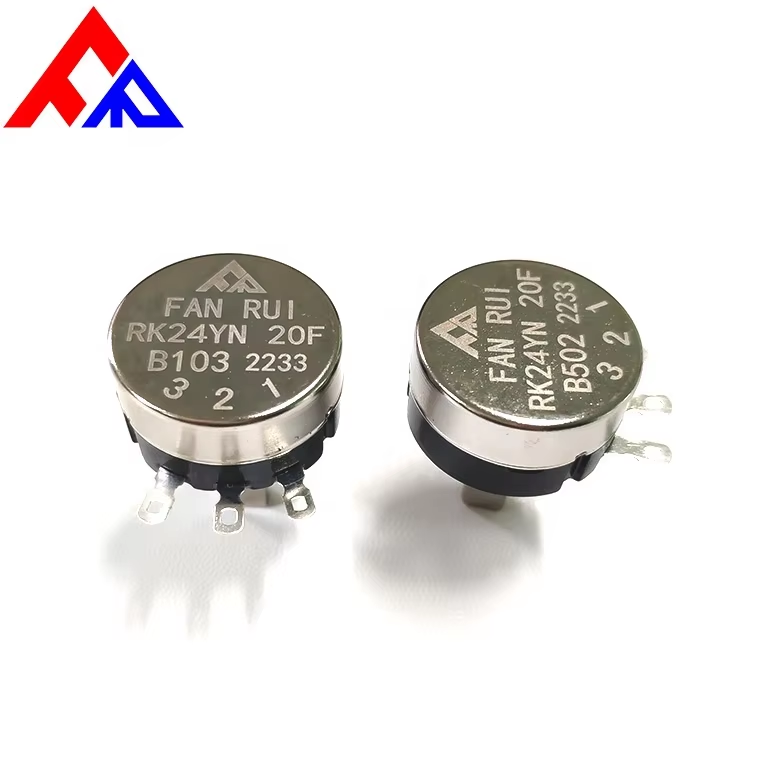

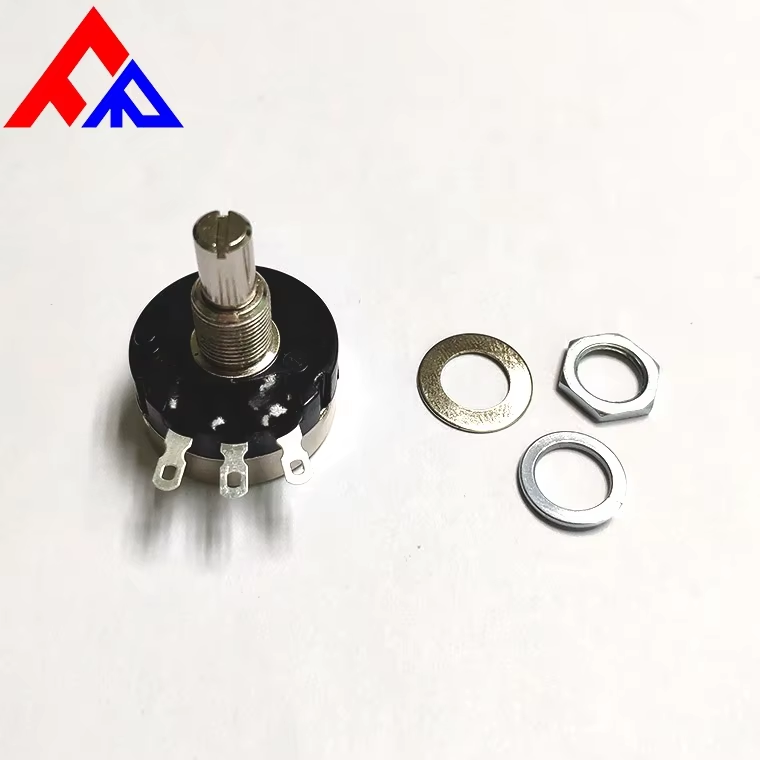

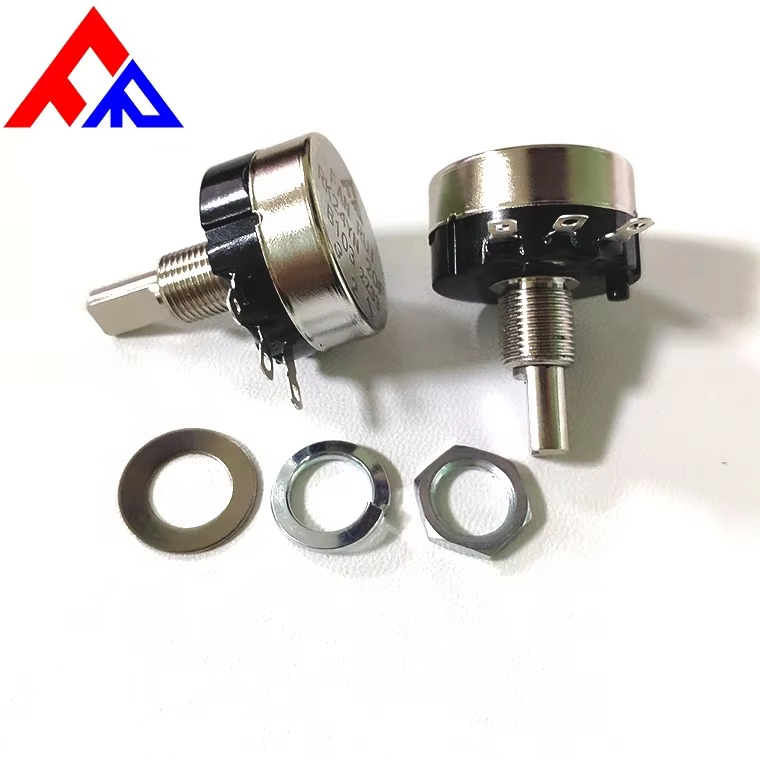

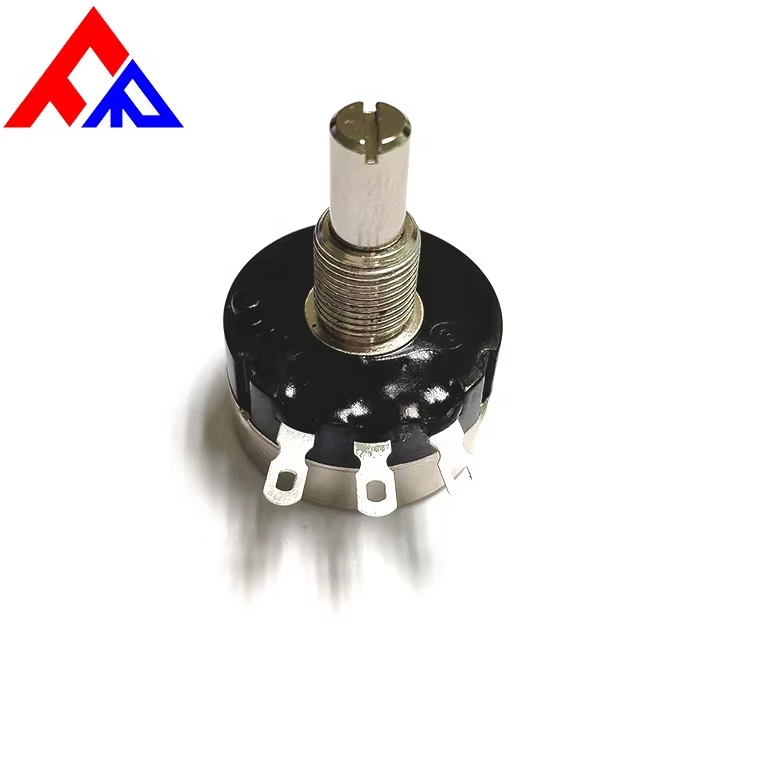

Product name: 24.6mm Rotary Potentiometer
Certification: ISO9001
Service: OEM ODM Available
Key words: Rotary Potentiometer 1K 5K 10K
Withstand Voltage: 500V AC 1 Minute
Insulation Resistance: DC500V 100M Min
Material: Metal + Plastic
Advantage: Timely Delivery
ROTATIONAL LIFE: 500000 Cycles
PAYMENT: Trade Assurance

Quantity

Discount (%)

Price

1 - 9

—

$1.79

10 - 99

2.23 %

$1.75

100 - 999

5.59 %

$1.69

1,000 - 9,999

10.61 %

$1.60

10,000+

13.41 %

$1.55

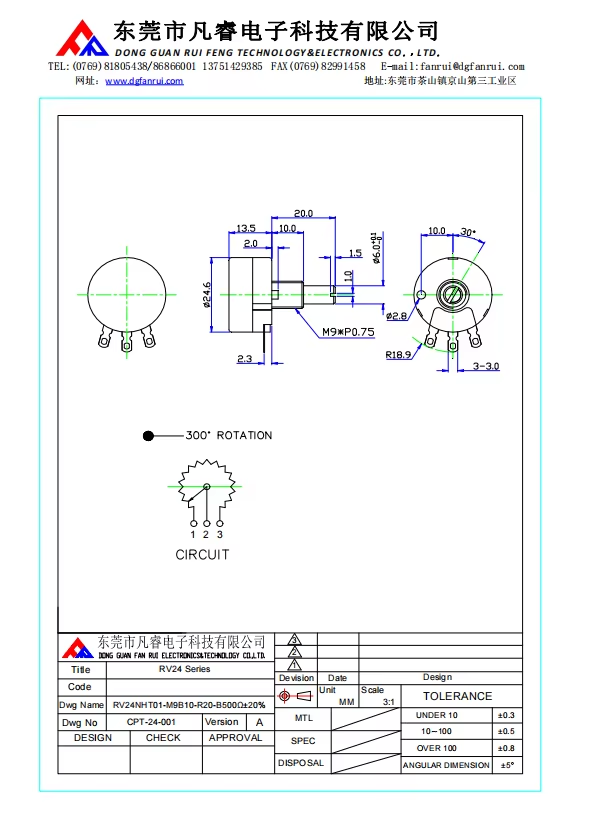

RV24NHT01-M9N10-F20A9-B10K±20-Specification-.pdf (26 downloads )

Information

The product name is rotary potentiometer, with an overall dimension of 24.6mm. Its product materials consist of metal, plastic, and carbon film. The combination of these materials provides a specific performance foundation for the product.

Operational Characteristics

In terms of operation, it is achieved by rotating with a finger on the top. The rotational feel is soft and smooth. This operational experience not only enhances user experience but also reflects the rationality and precision of the product’s mechanical structure design.

Product Features

This rotary potentiometer features stable performance, which is one of its core advantages. In addition, it offers options for the shaft handle shape, length, and installation mode, enabling it to adapt to diverse usage requirements and installation environments.

Application Scenarios and Functions

It has a wide range of application scenarios, covering various household appliances such as audio amplifiers and water heaters. Its main functions include, but are not limited to, volume adjustment, voltage adjustment, temperature adjustment, and speed adjustment, playing a key role in regulation and control in different household appliances.
